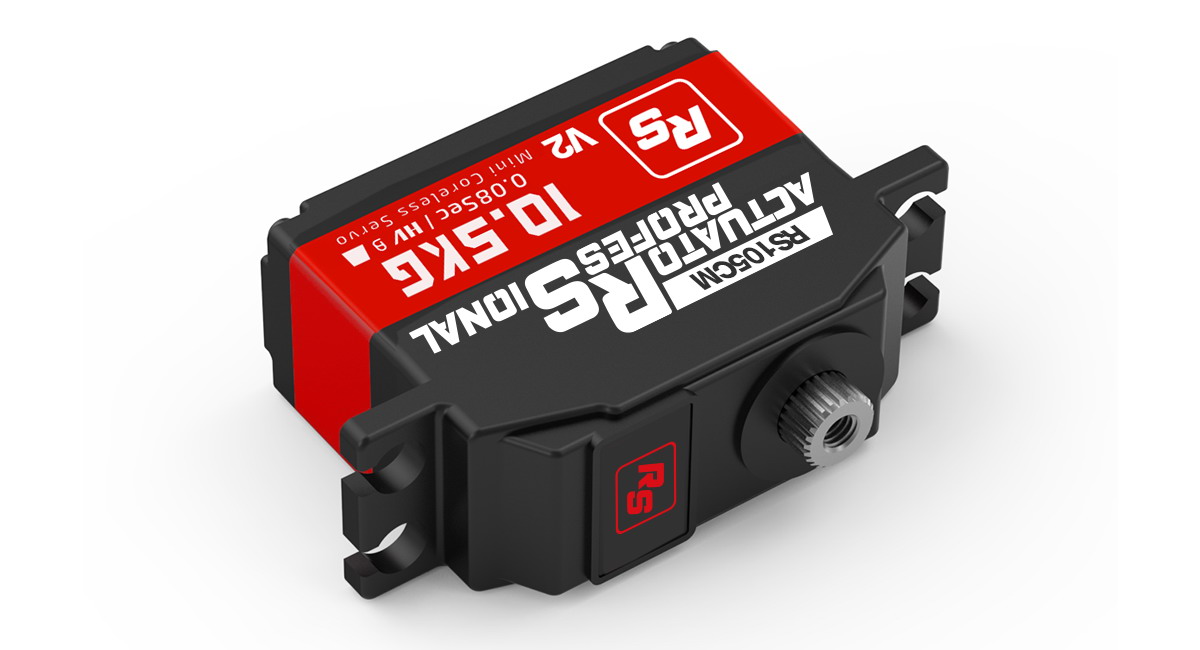

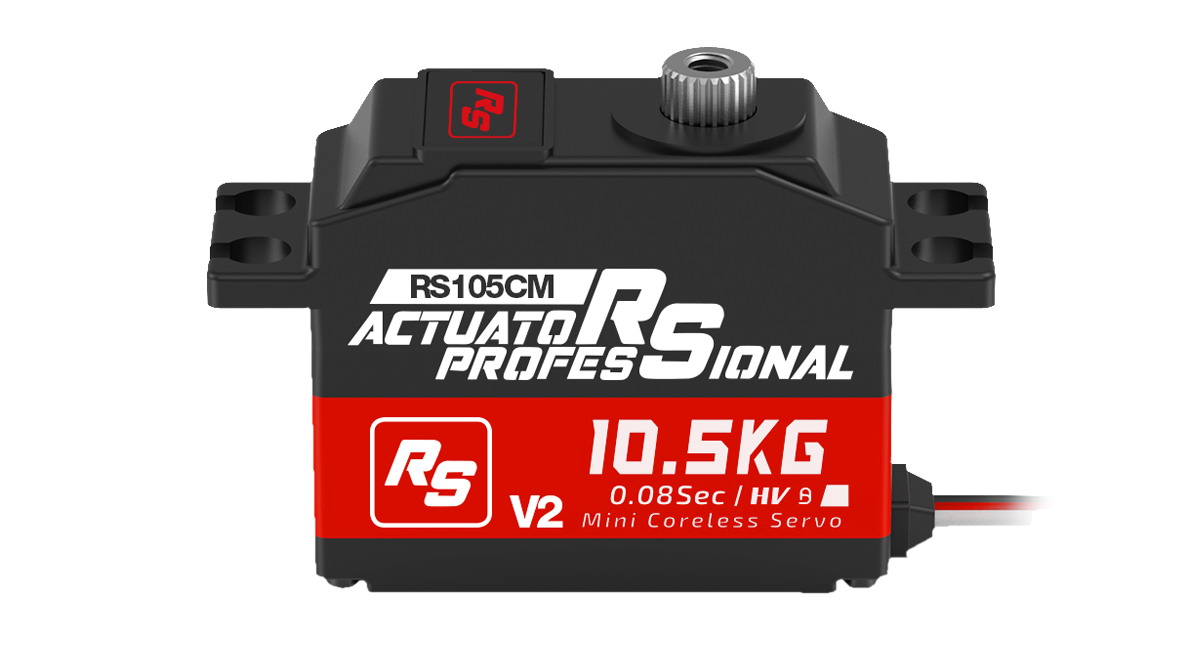

RS105CM – SERVO CORELESS 10,5KG/8,4V MINI

RS105CM is a high torque version series servo. Strong internal composition structure of titanium Gear, coreless motor and dual ball bearing to make sure the smoother operation. It is a high torque low cost digital mini servo widely use for RC Car and RC Helicopter. Upgrade programmable feature allow user to parameter adjustment.

Feature
High Performance Digital Servo
High Precision Metal Gears
High Quality Coreless Motor
Medium Aluminum Case
Dual Ball Bearings
Ideal for RC Helicopter, Car, Airplane, Robot etc.

Specification
RS105CM
Operating Voltage: 4.8-8.4 V
Operating speed: 0.095sec/60°@6.0V
Operating speed: 0.085sec/60°@7.4V
Stall Torque:  8.5 kg-cm (118 oz-in) @6.0V
Stall Torque:  9.5 kg-cm (132 oz-in) @7.4V
Gear: Titanium
Motor: CLS
Weight: 26g
Connector Wire: JR 180mm
