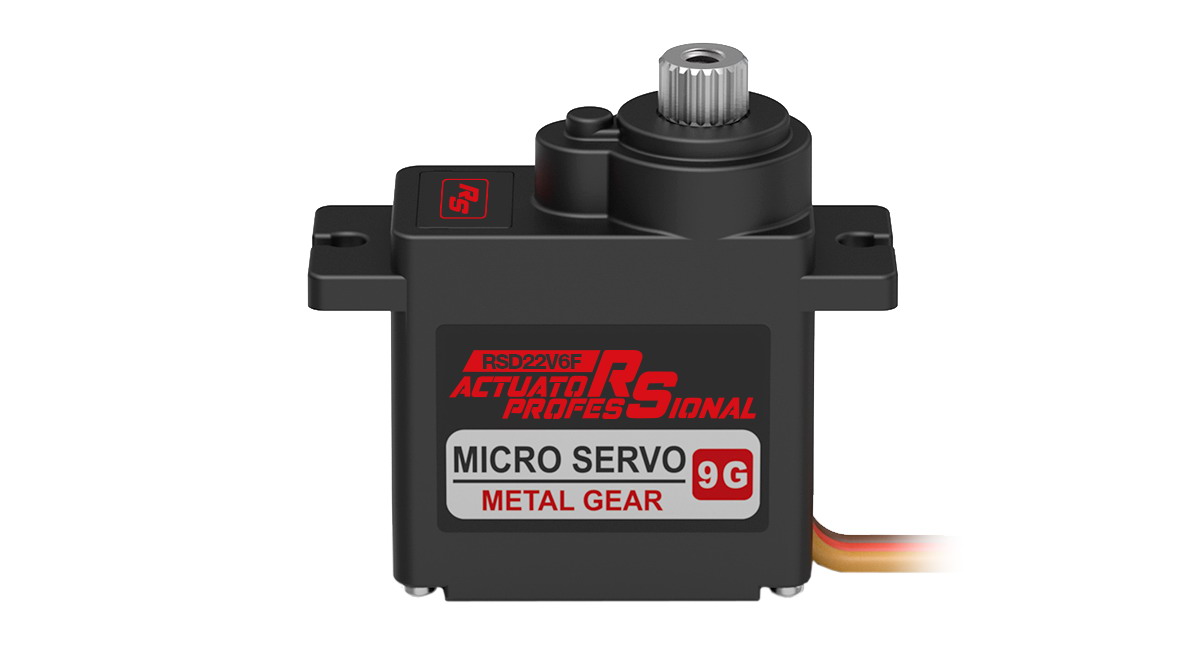

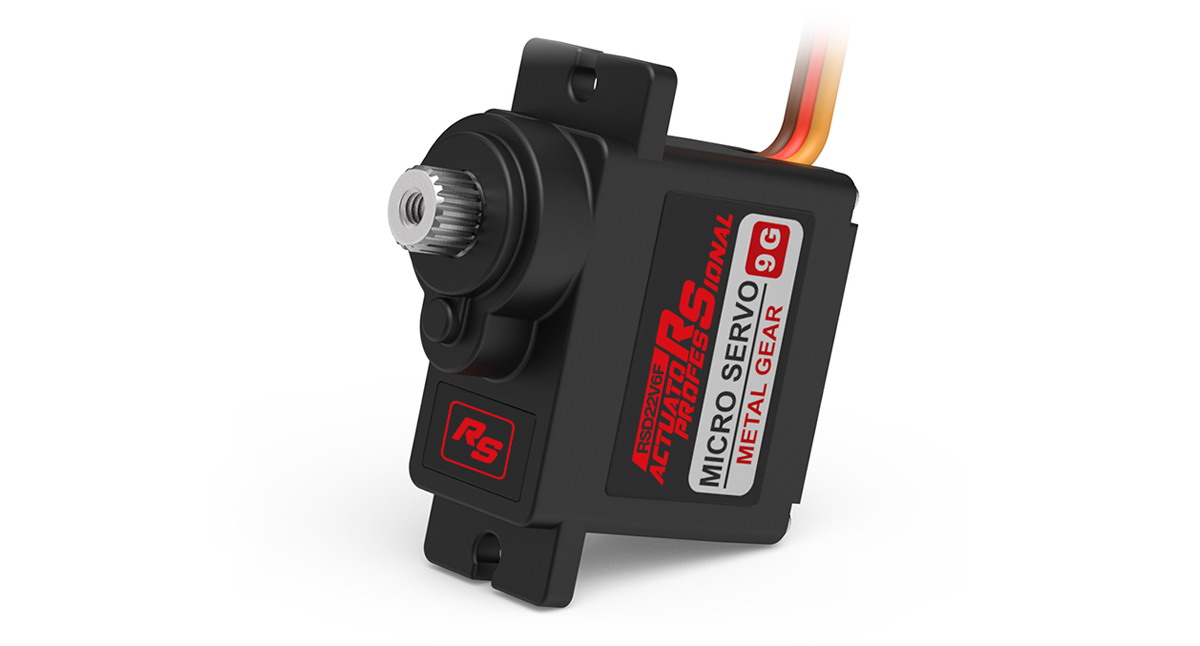

RSD22V6F – SERVO DC 2,2KG-6,0V FEEDBACK MICRO

RSD22V6F is a 9g digital high performance micro servo, high durable metal gears and 21T steel spline, which produce 2.2KG torque and 0.11Sec speed at 6V. It is allowed to work between -15℃ to 70℃ environment temperature. 180° maximum operation angle can meet most of requirements, perfect suit for most small size RC Aircraft, Car, Helicopter, Robot etc.

Feature
High Performance Digital Servo
Upgrade Reliable Steel Gear
High Precision Metal Gear Structure
High Quality Brushed Motor
Ideal for Small Size Airplane, Helicopter, Fixed Wing Aircraft, Car, Robot

Specification
Model Name: RSD22V6F
Operating Voltage: 4.8-6.0V
Operating speed: 0.13sec/60° @ 4.8V
Operating speed: 0.11sec/60° @ 6.0V
Stall Torque: 1.8 kg-cm (25 oz-in) @4.8V
Stall Torque: 2.2 kg-cm (30 oz-in) @ 6.0V
Motor type: DC
Gear type: Steel

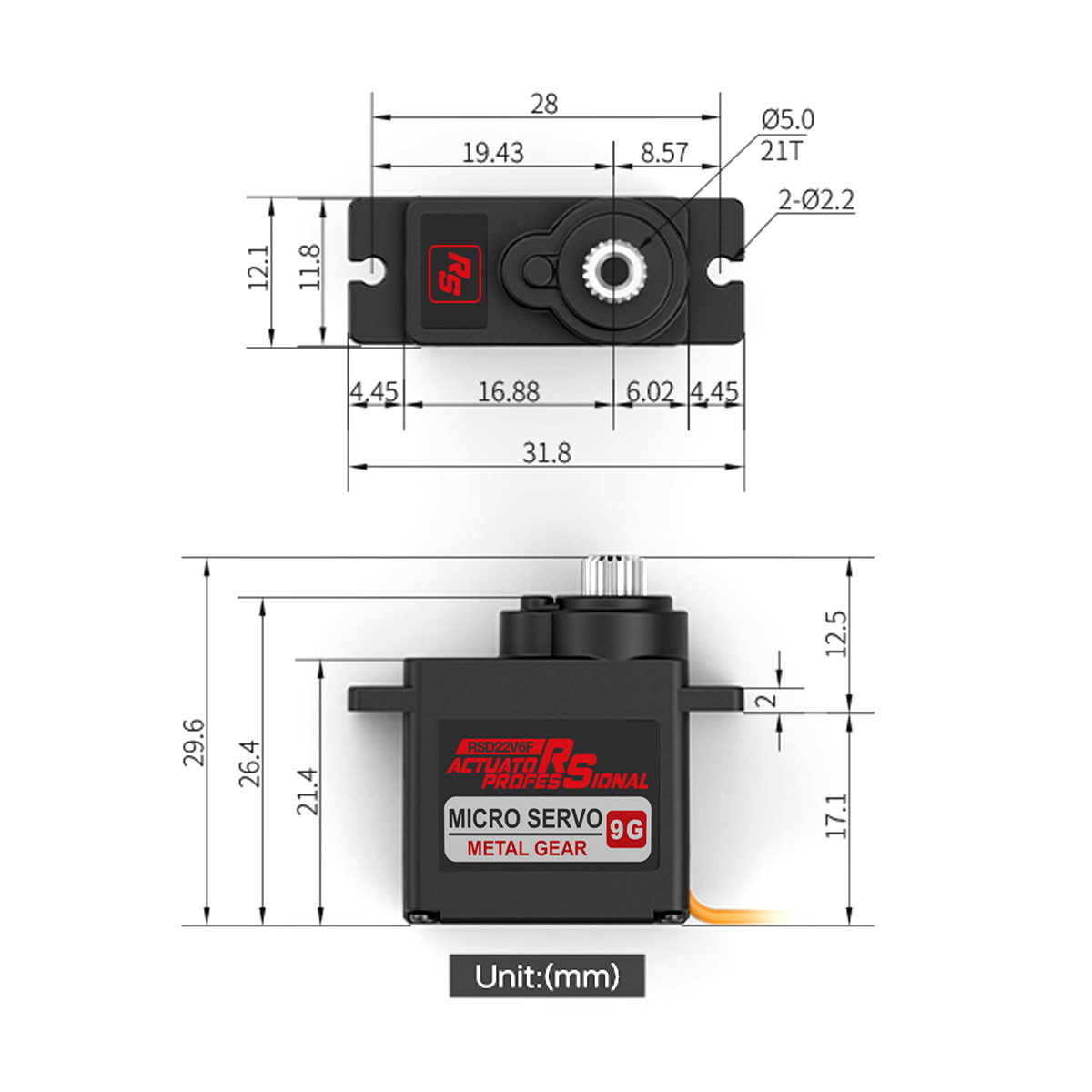

Size: 23*12.1*21.4mm (0.9 x 0.47 x 0.84 in)
Weight: 11g
Connector Wire: JR 180mm
