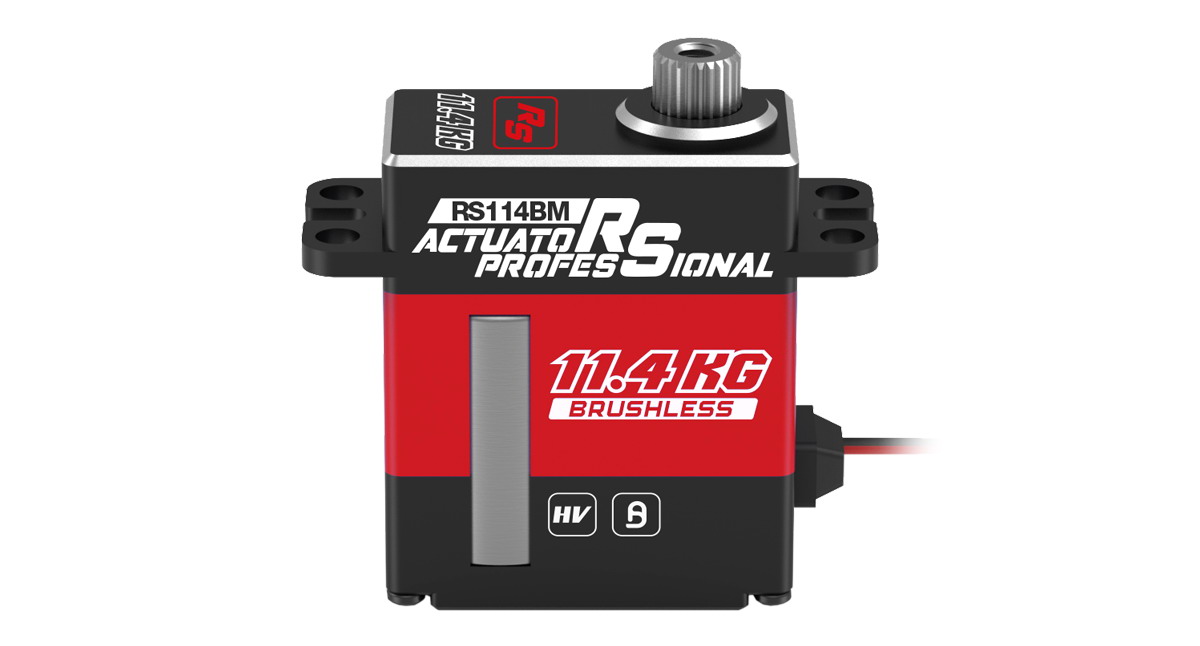

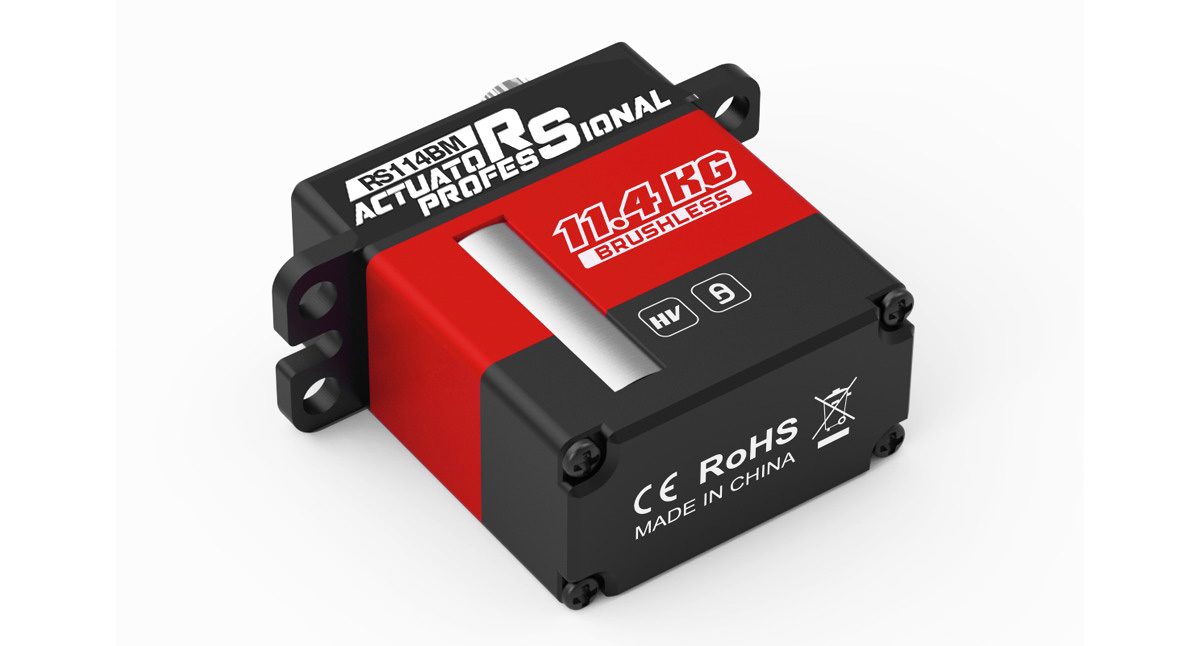

RS114BM – SERVO BRUSHLESS 11,4KG/8,4V MINI

RS114BM, is the 8.4V high voltage compatible performance digital mini servo, also the first launch brushless motor 12mm thickness RC servo. The biggest highlight of this product is the use of a newly designed brushless motor. With this support, the speed of servo can reach 0.068sec and the torque can even reach 11.4kg-cm at 8.4V in this Mini size. It is made in a robust CNC aluminum case with high accuracy metal gears, it particularly ideal for RC cars and other application, like robot arm, teaching and other agricultural applications which asked for a 11.4kg-cm BLS mini size servo.

Feature
High Precision Metal Gears
Fully CNC Aluminium Housing
Long Performance Life Brushless Motor
Digital Programmable 25T Mini RC Servo
Good Smoothness Double Ball Bearings
Ideal for 1/24 Scale RC Monster Car, SCX10.3, SCX24, Racing Car etc.

Specification
RS114BM
Operating Voltage: 4.8-8.4V
Operating speed: 0.105sec/ 60° @ 4.8V
Operating speed: 0.092sec/60° @ 6.0V
Operating speed: 0.075sec/60° @ 7.4V
Operating speed: 0.068sec/60° @ 8.4V
Stall Torque: 7.20 kg-cm (100 oz-in) @ 4.8V
Stall Torque: 8.50 kg-cm (118 oz-in) @ 6.0V
Stall Torque: 10.20 kg-cm (142 oz-in) @ 7.4V
Stall Torque: 11.40 kg-cm (158 oz-in) @ 8.4V
Gear: Strength Steel + Copper
Motor：Brushless

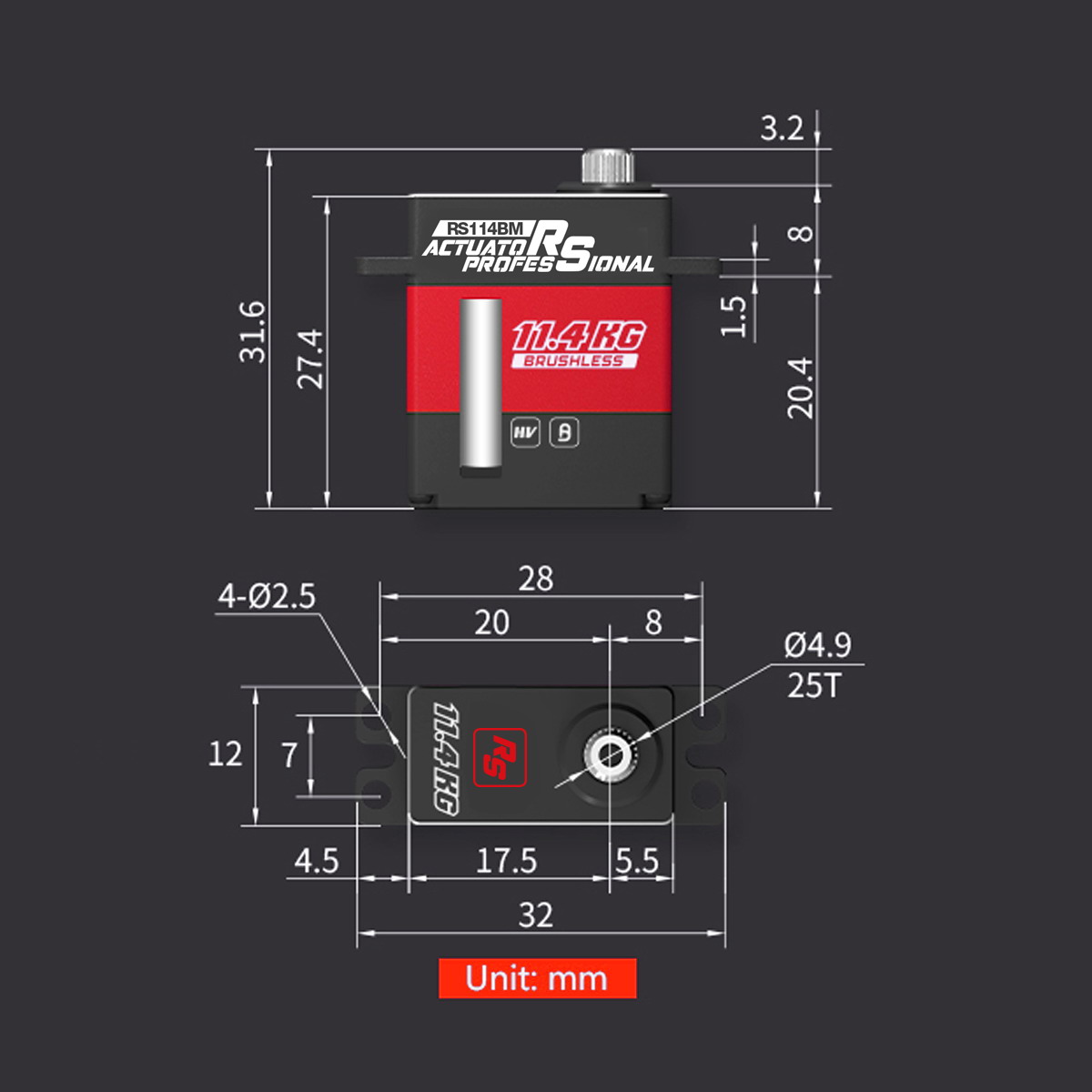

Size: 23*12*27.5mm (0.90 x 0.47 x 1.08 in)
Weight: 21g
Connector Wire: TYU 180mm / 26AWG
