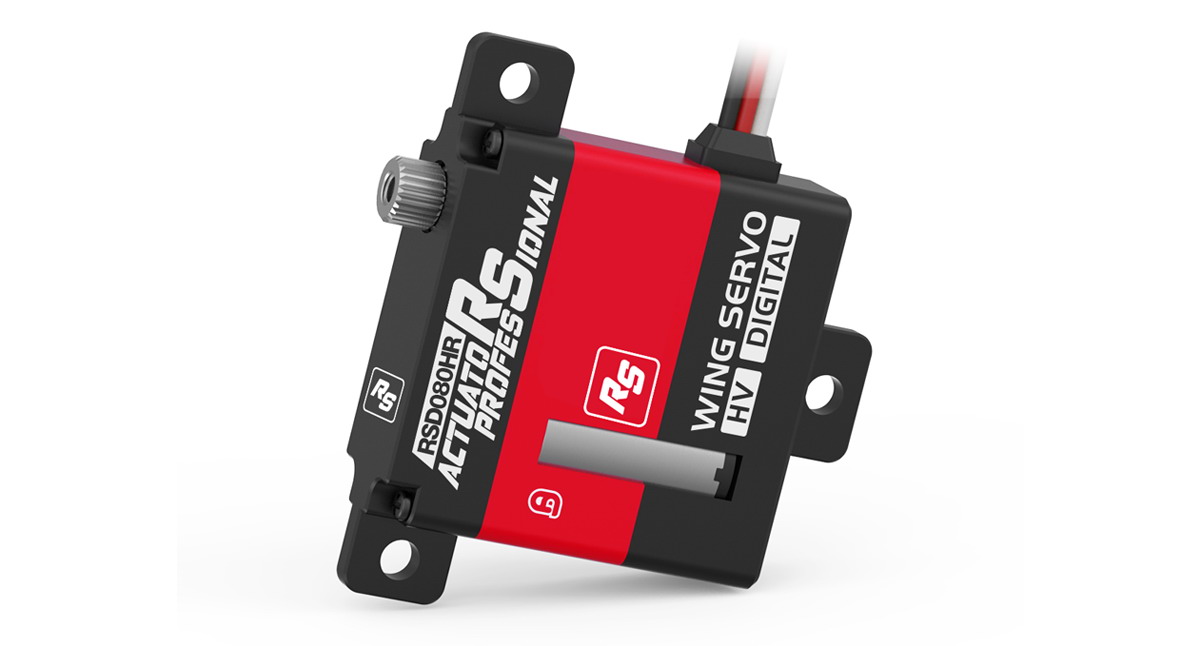

RSD080HR – SERVO CORELESS 8.0KG/8.4V MINI

As the new partner of the wing servo RSD080HR. It features an aluminum CNC housing and a high-efficiency coreless exposed motor design. The ultra-smooth and reliable double bearing and precise potentiometer make the positioning accuracy of the servo more accurate.  We will provide more innovative independent designs to provide customers with more experience and fun.

Feature
High Performance Digital servo
2S High Voltage
High Efficiency Coreless Motor
ReliableBall Bearing
Full Aluminium Case
Programmable Digital Circuit
Ideal For Airplane, Glider etc.

Specification
RSD080HR
Operating Voltage: 4.8-8.4V
Operating Speed: 0.120sec/ 60° @ 4.8V
Operating Speed: 0.105sec/60°@ 6.0V
Operating Speed: 0.080sec/60°@ 8.4V
Stall Torque: 5.0 kg-cm (69 oz-in) @ 4.8V
Stall Torque: 6.2 kg-cm (86 oz-in) @ 6.0V
Stall Torque: 8.0 kg-cm (111 oz-in) @ 8.4V
Gear: Strength Steel
Motor: CLS
Size: 30*10*30.5mm
Weight: 24.5g
Connector Wire: TYU 180mm /26AWG
