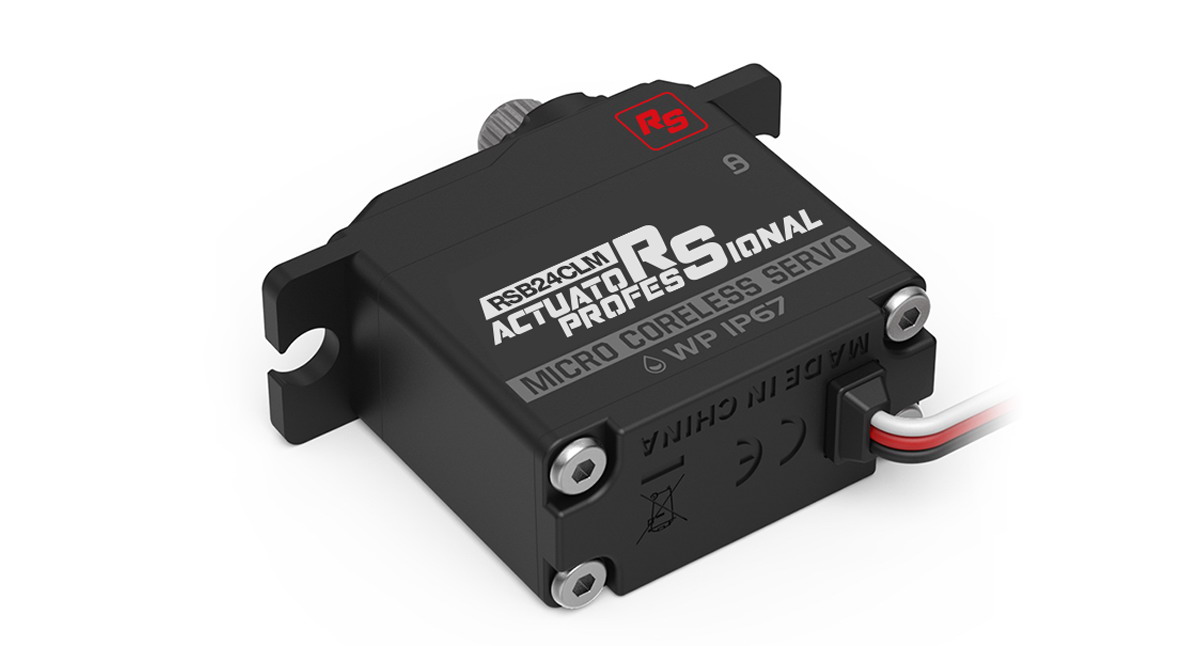

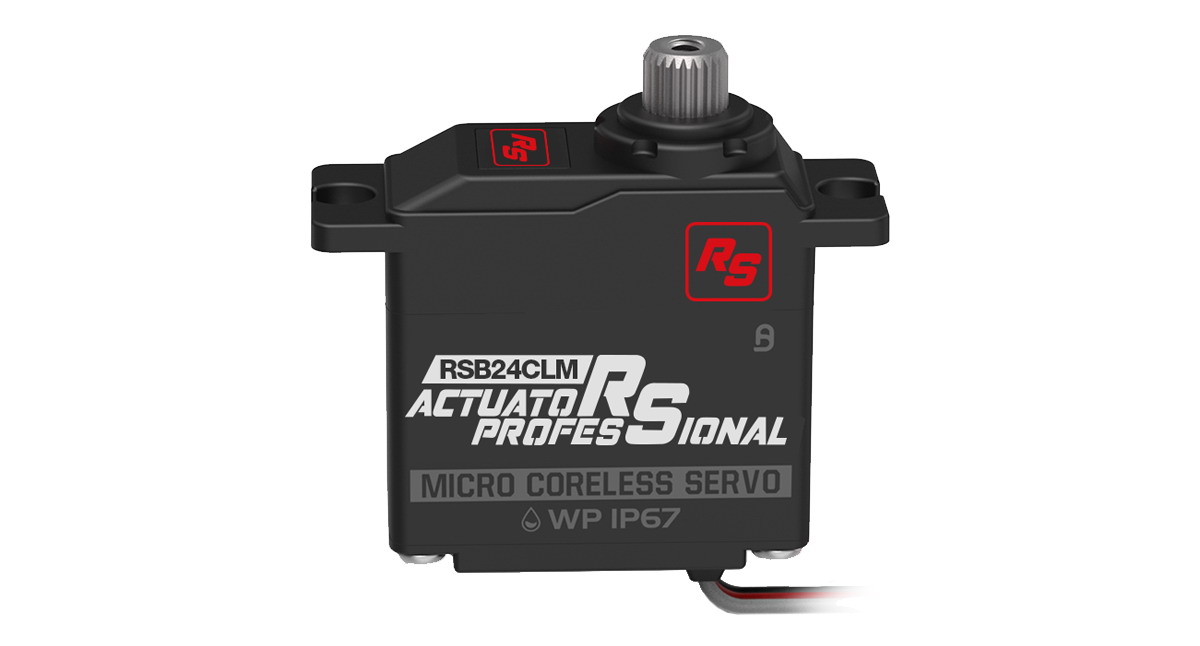

RSB24CLM – SERVO CORELESS 6,0KG/8,4V MINI IP67

Actuator Professional released RSB24CLM IP67 waterproof mini servo, which is a upgrade replacement of Traxxas T2080. With the support of this waterproof function, the rc model can run in different scenarios such as wet, muddy, drizzle, stream, snow, etc., breaking the limitations of ground operation. And it’s small size and 22g plastic light weight case, it can easily accommodate rc models to save more space. It has 8.4V 2S high voltage compatibility, adopts long-life coreless motor and double bearings design, with high-precision titanium gears, the maximum torque can reach 6.0KG and the speed of 0.085Sec. Perfect for Traxxas 1/16 E-Revo, Slash, Summit, Ken Block Fiesta, Kyle Busch Trucks, Mustang Boss 302, Rally VXL, and other vehicles.

Feature
* High Performance Digital Mini Servo
* High Precision Titanium Gears
* High Quality Coreless Motor
* Reliable Silky Double Bearings
* IP67 Grade Waterproof Function
* Support Programmable Parameter
* Small Size And Light Weight Save More Space
* Ideal for 1/16 Scale RC Car E-Revo, Slash 4WD, Robot, Boat, Plane, Helicopter, etc.

Specification
Item name: RSB24CLM
Operating Voltage: 4.8-8.4V
Operating speed: 0.115sec/60°@6.0V
Operating speed: 0.100sec/60°@7.4V
Operating speed: 0.085sec/60°@8.4V
Stall Torque:  4.6 kg-cm (64 oz-in) @6.0V
Stall Torque:  5.4 kg-cm (75 oz-in) @7.4V
Stall Torque:  6.0 kg-cm (83 oz-in) @8.4V
Gear: Titanium
Motor: Coreless

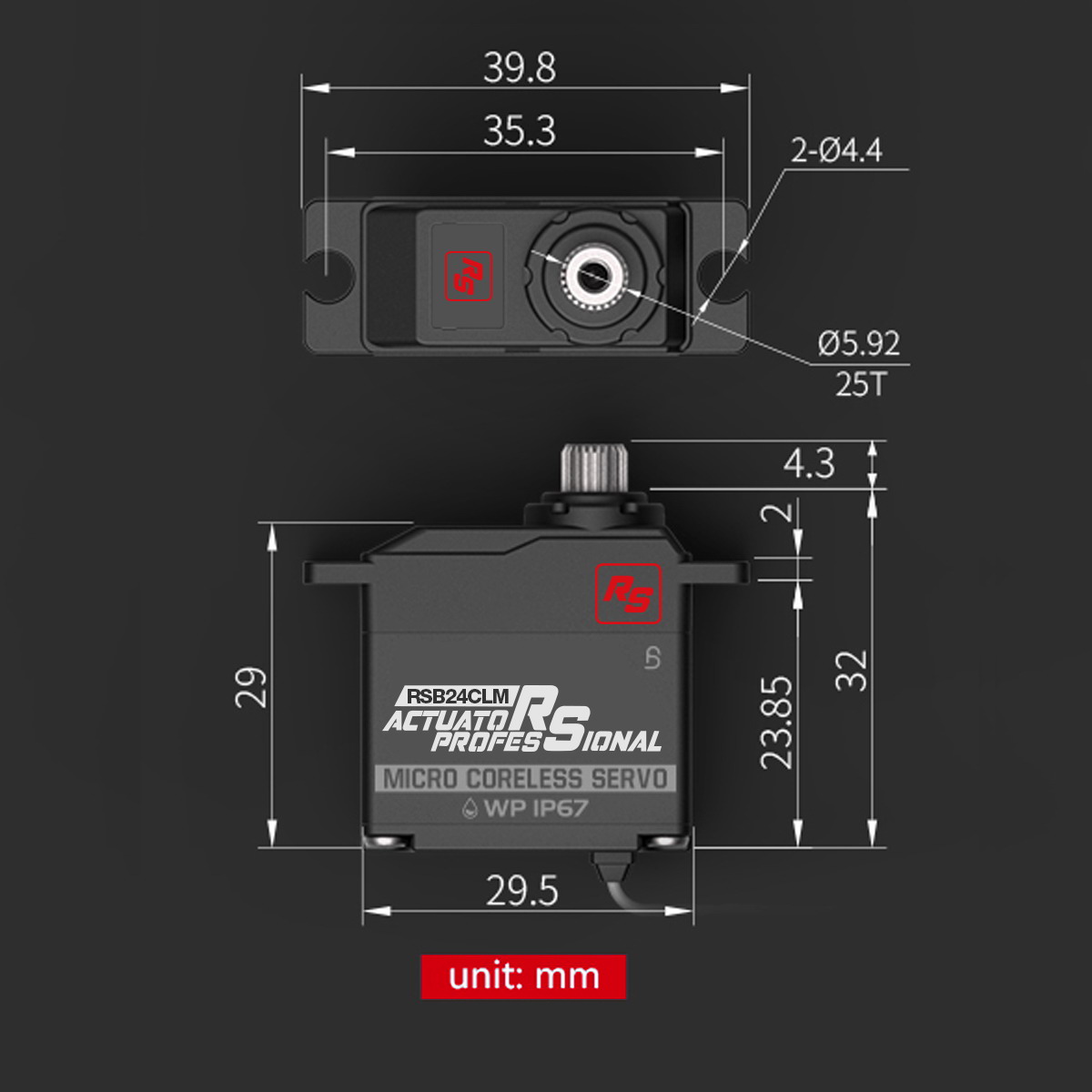

Size: 29.5*14*29mm (1.16 x 0.57 x 1.14 in)
Weight: 22g
Connector Wire: JR 180mm / 26AWG
