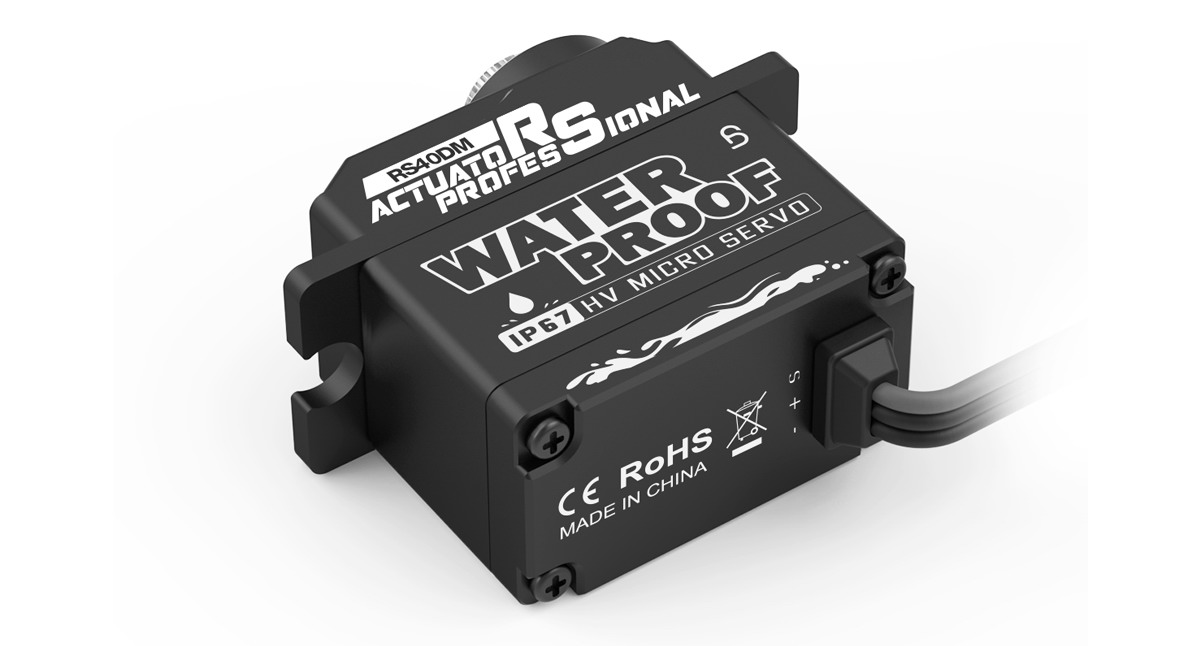

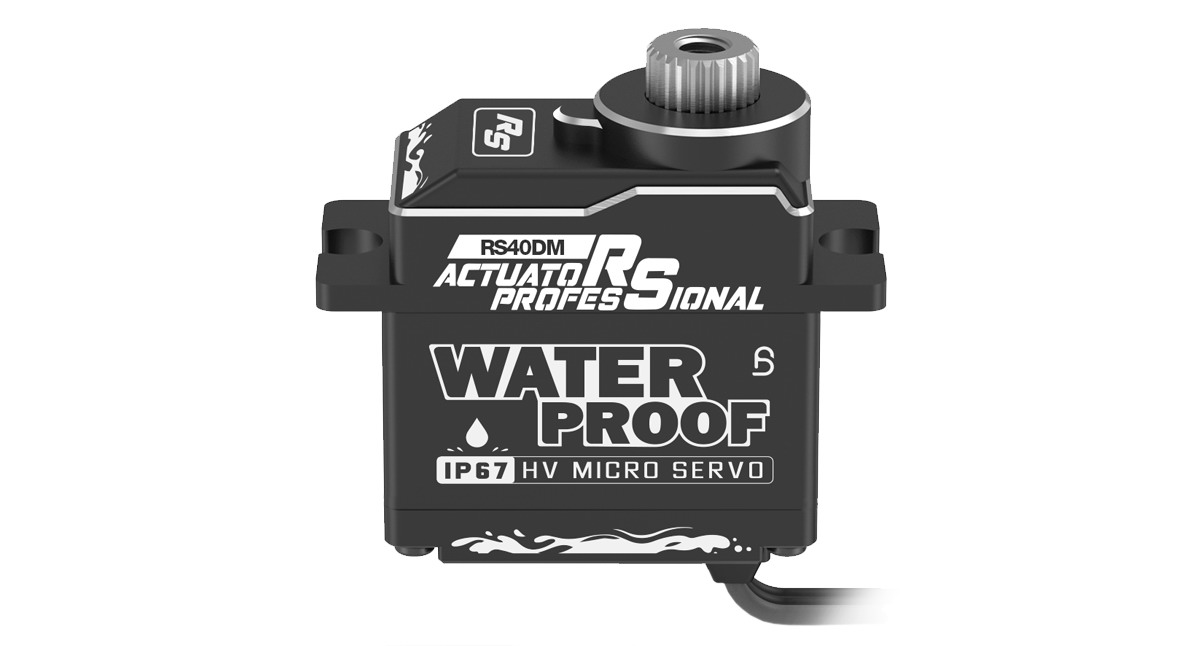

RS40DM – SERVO DC 4,0KG/8,4V MINI

After repeated testing and modifications for the sub micro servo RS40DM, now it is available now. Fast cool full aluminum case and structure. Standard metal 25T spline, totally upgrade material for high end digital micro servo.

This servo can deliver 4KG.CM (55.6 oz-in)  torque and 0.088sec/60° speed at 8.4V even in this compact size. Easy to install in different scale model such as 1:18 , 1:10, 1:8 etc. Programmable feature also allow for different users such as technical engineer, project manager or developer to find the suitable data for their applications.

Great choice to upgrade for your Traxxas all 1/10 models, RC Crawler TRX-4, Axial SCX10 III,  Absima 1:10 EP Crawler, Absima 1:8 EP Crawler, Absima sherpa

Feature
Full Aluminum Case
Standard 25 Tooth Spline
Optimized for Shift Dig Steering
Wide Voltage Application
Magnetic Waterproof IP67
Parameter Programmable

Specification
Model Name: RS40DM
Operating Voltage: 4.8-8.4V
Operating speed: 0.130sec/60° @ 4.8V
Operating speed: 0.110sec/60° @ 6.0V
Operating speed: 0.095sec/60° @ 7.4V
Operating speed: 0.088sec/60° @ 8.4V
Stall Torque: 2.2 kg-cm (30 oz-in) @ 4.8V
Stall Torque: 3.0 kg-cm (41 oz-in) @ 6.0V
Stall Torque: 3.5 kg-cm (48 oz-in) @ 7.4V
Stall Torque: 4.0 kg-cm (55 oz-in) @ 8.4V
Gear: Titanium
Motor: DC

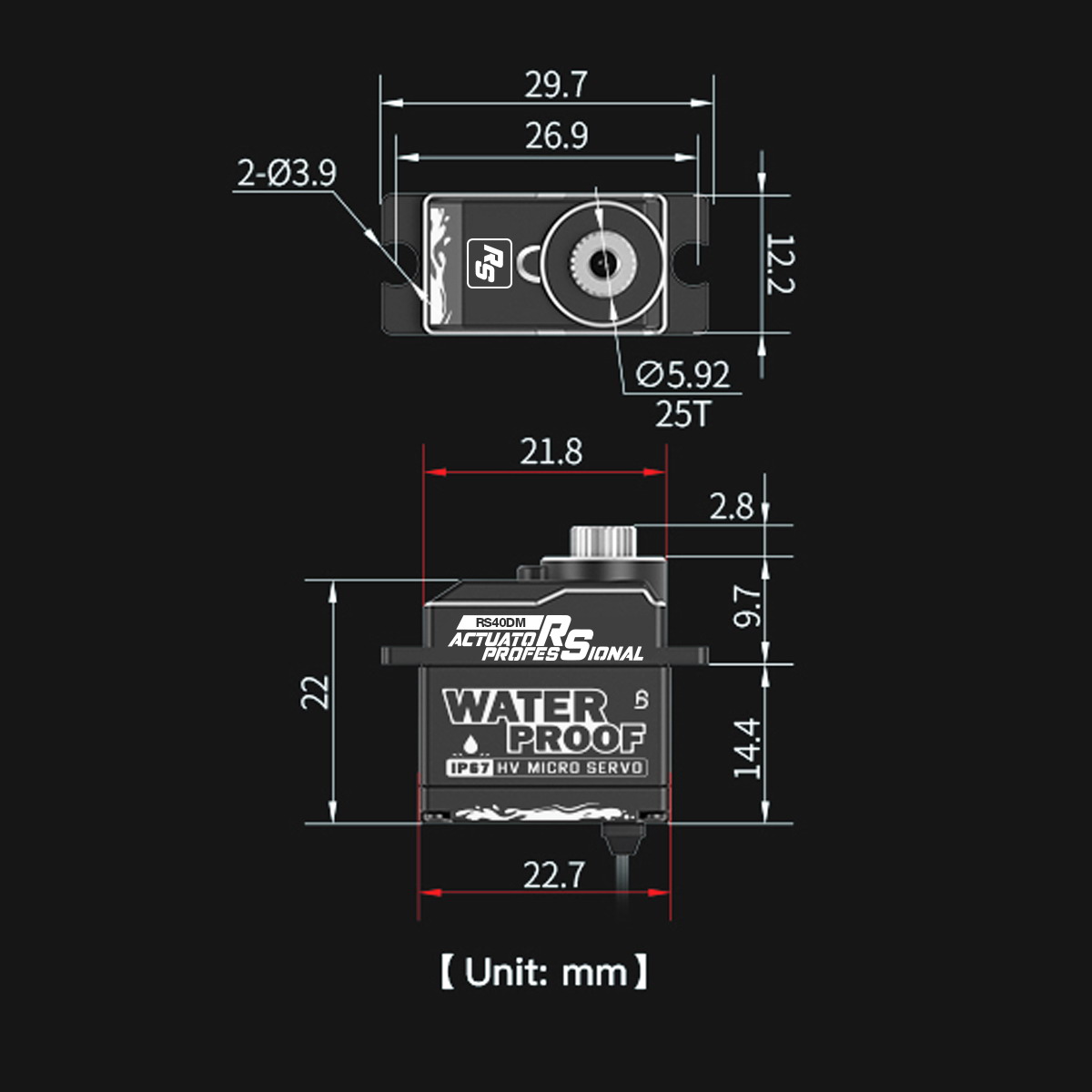

Size: 22.9*12.8*22mm
Weight: 18g
Connector Wire: TYU 350 mm / 26AWG
