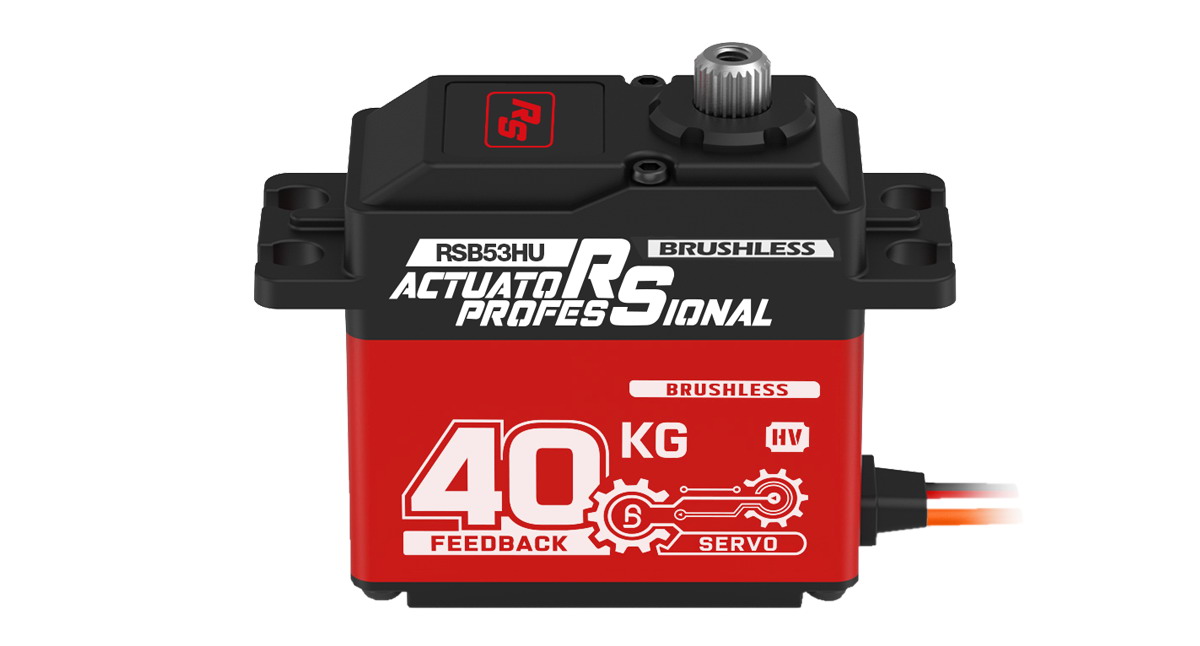

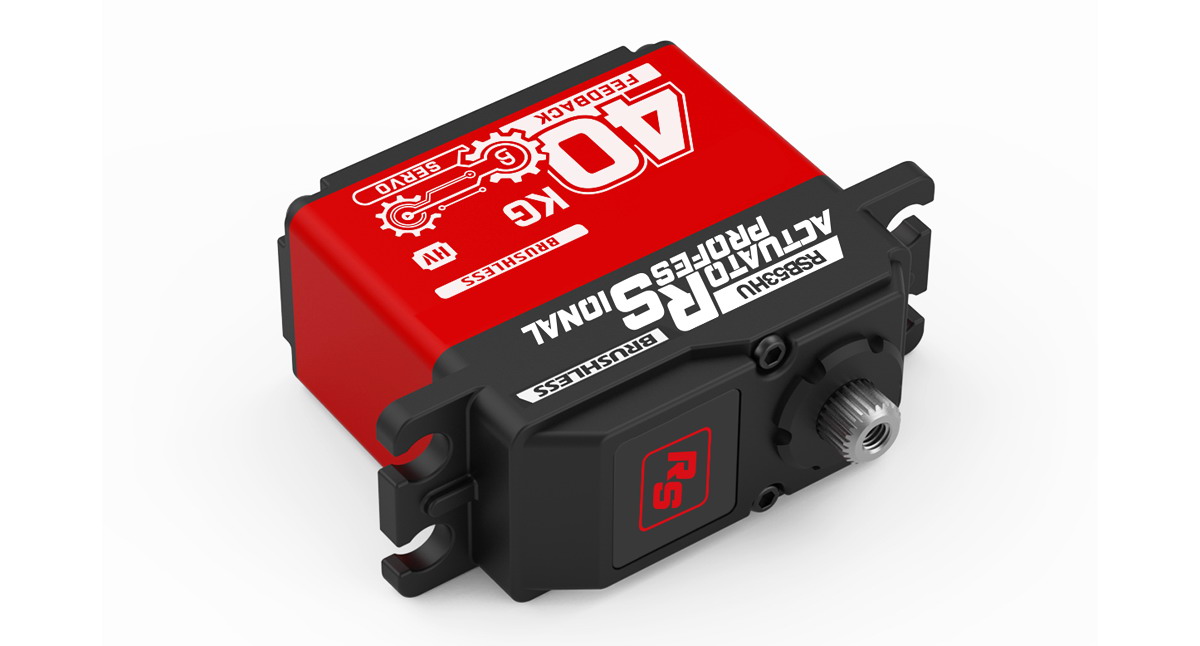

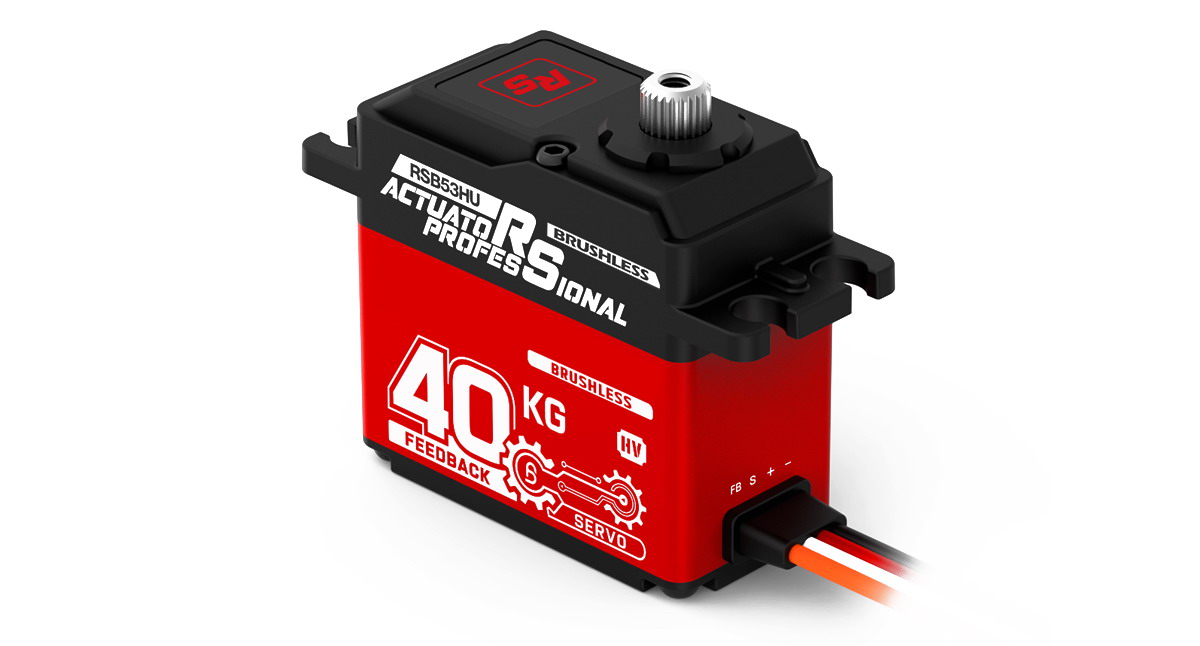

RSB53HU – SERVO BRUSHLESS 40,0KG/8,4V STD

RSB53HU is a light weight standard size servo, providing access to feedback potentiometer through the additional fourth orange wire, which is capable to measure the output angle directly.

40KG high torque and metal gear chain design for heavy duty application. Ensure the servo has reached its designated position or detect any potential impediments, of course, this allows additional closed-loop control from your controller. Enable for more complex robotics or industry applications, such as determining when the servo has reached its target.

Feature
Medium Aluminum Case
2S LiPo High Voltage Capable
Long Lifespan Brushless Motor
Separate Single Wire with JR Female Connector
Suitable for Robotics, Industry, Interactive artwork, Small-scale animatronics etc.

Specification
Model Name: RSB53HU
Operating Voltage: 4.8-8.4V
Operating speed: 0.150sec/60° @ 6.0V
Operating speed: 0.120sec/60° @ 7.4V
Operating speed: 0.105sec/60° @ 8.4V
Stall Torque: 30 kg-cm (417 oz-in) @ 6.0V
Stall Torque: 36 kg-cm (500 oz-in) @ 7.4V
Stall Torque: 40 kg-cm (556 oz-in) @ 8.4V
Gear: Steel
Motor: Brushless
Size: 40*20*37.5mm (1.57 x 0.78 x 1.47 in)
Weight: 69.5g
Connector Wire: JR Dupont 2.54* 4PIN 300mm / 22AWG
Position Signal Voltage: 300 to 3000 mV @180°
