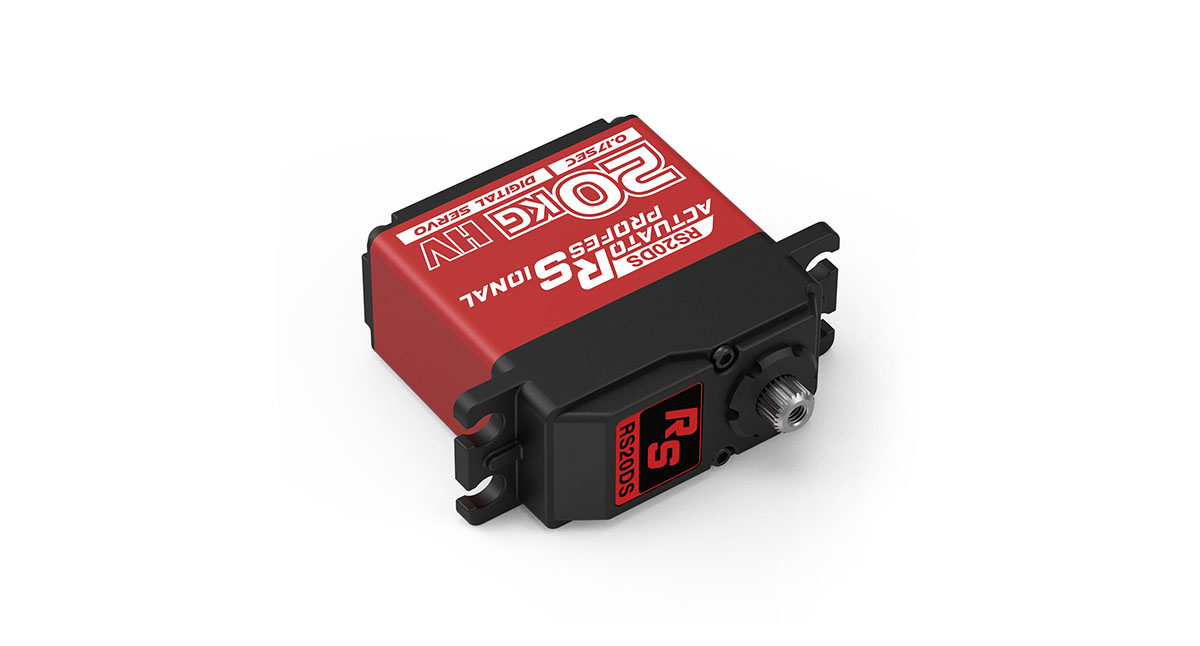

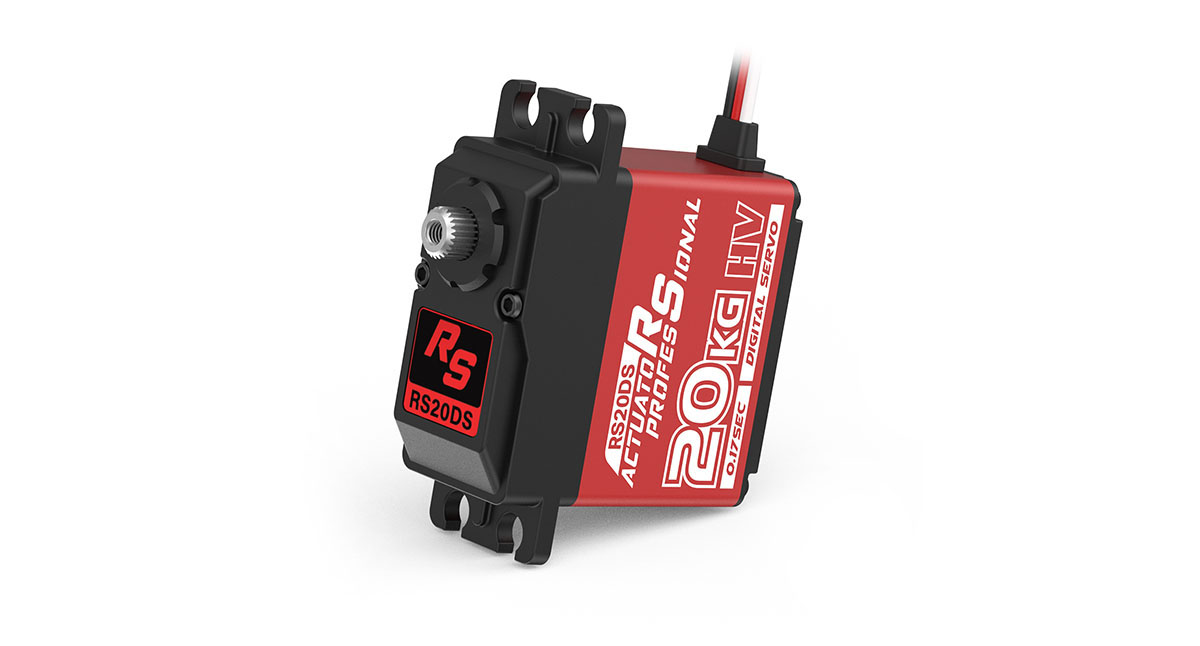

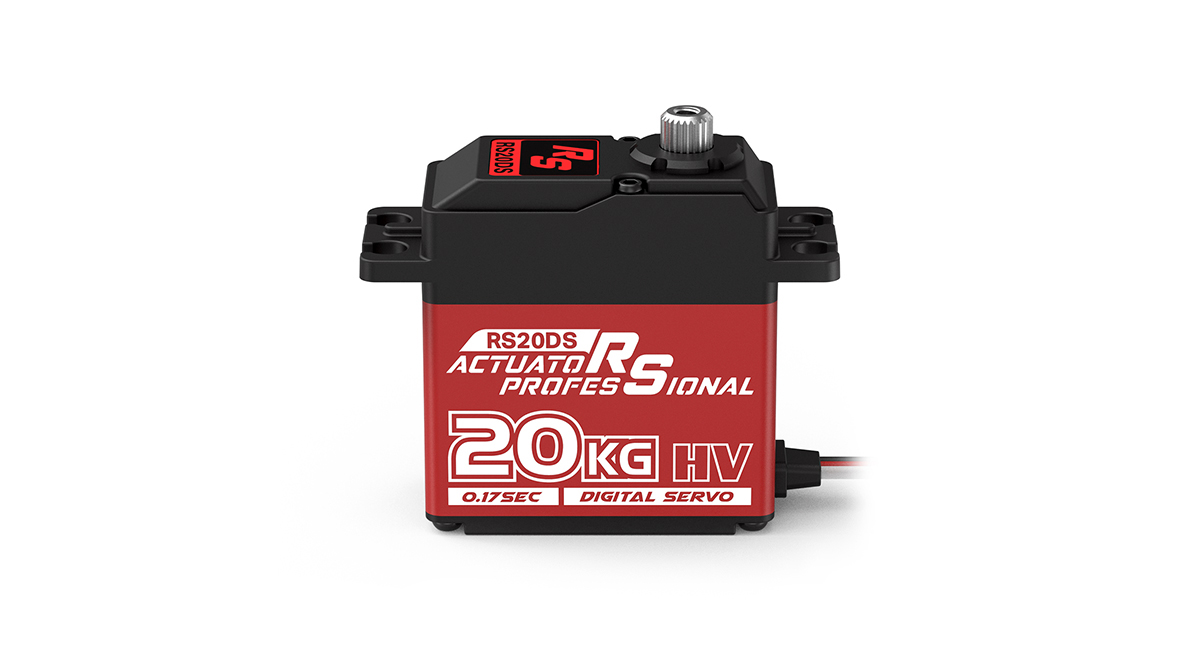

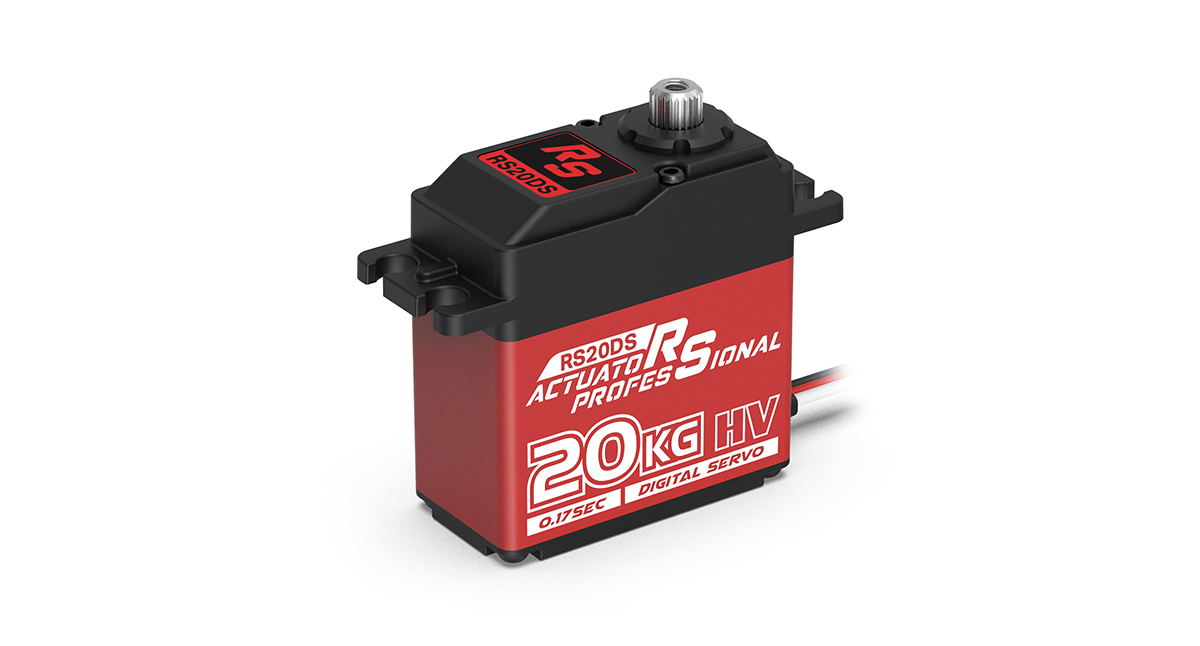

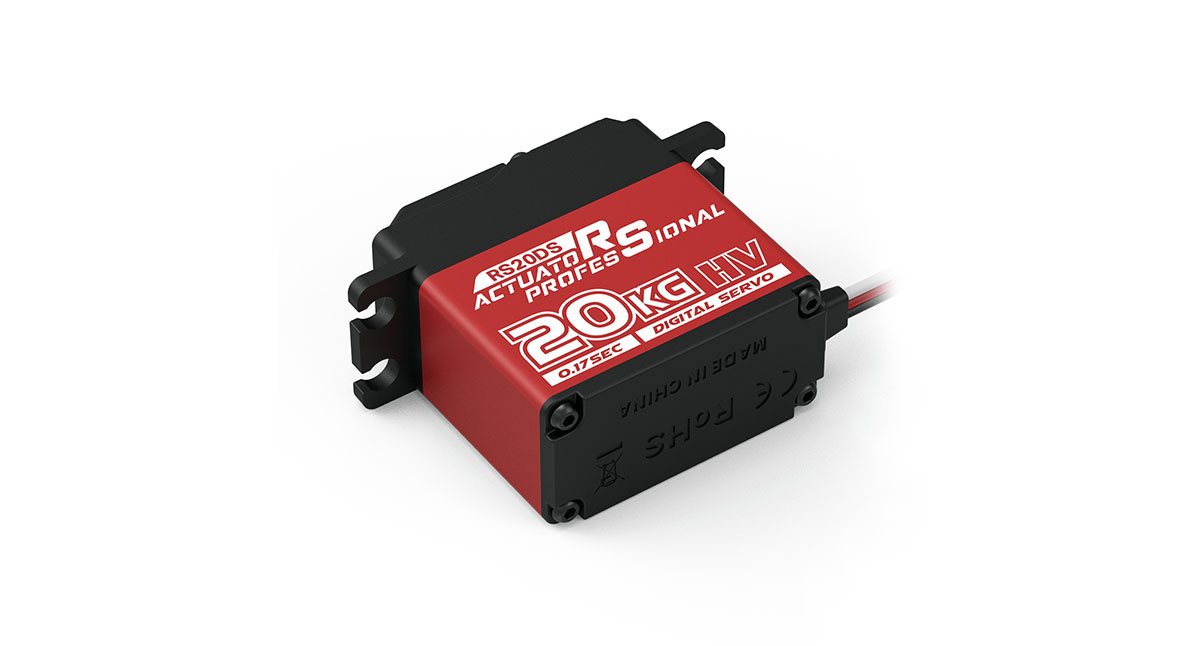

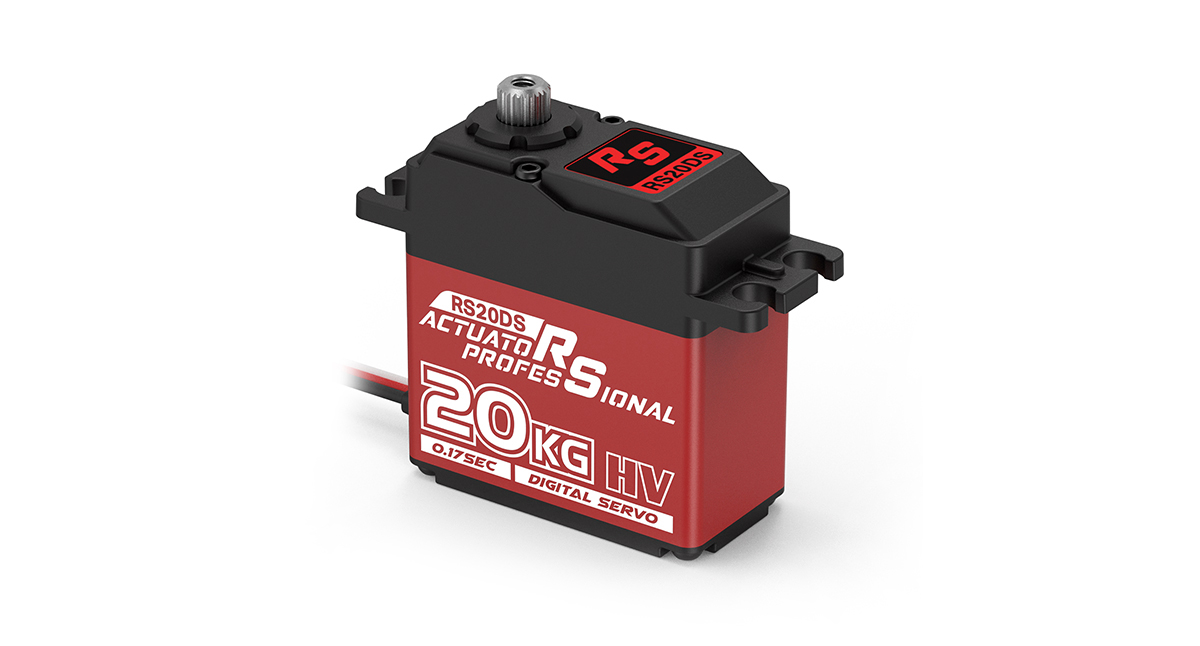

RS20DS – SERVO DC 20.0KG/8.4V STD

Control System

Pulse width modulation control

Refresh Rate

333Hz

Neutral Position

1520µS

Signal Mode

Digital

Dead band

4µSec

Operating Voltage

4.8V ~ 8.4V

Operating Temperature

-15C°~ +70C°

Bearing

Double Ball Bearings

Mechanical Angle

220°

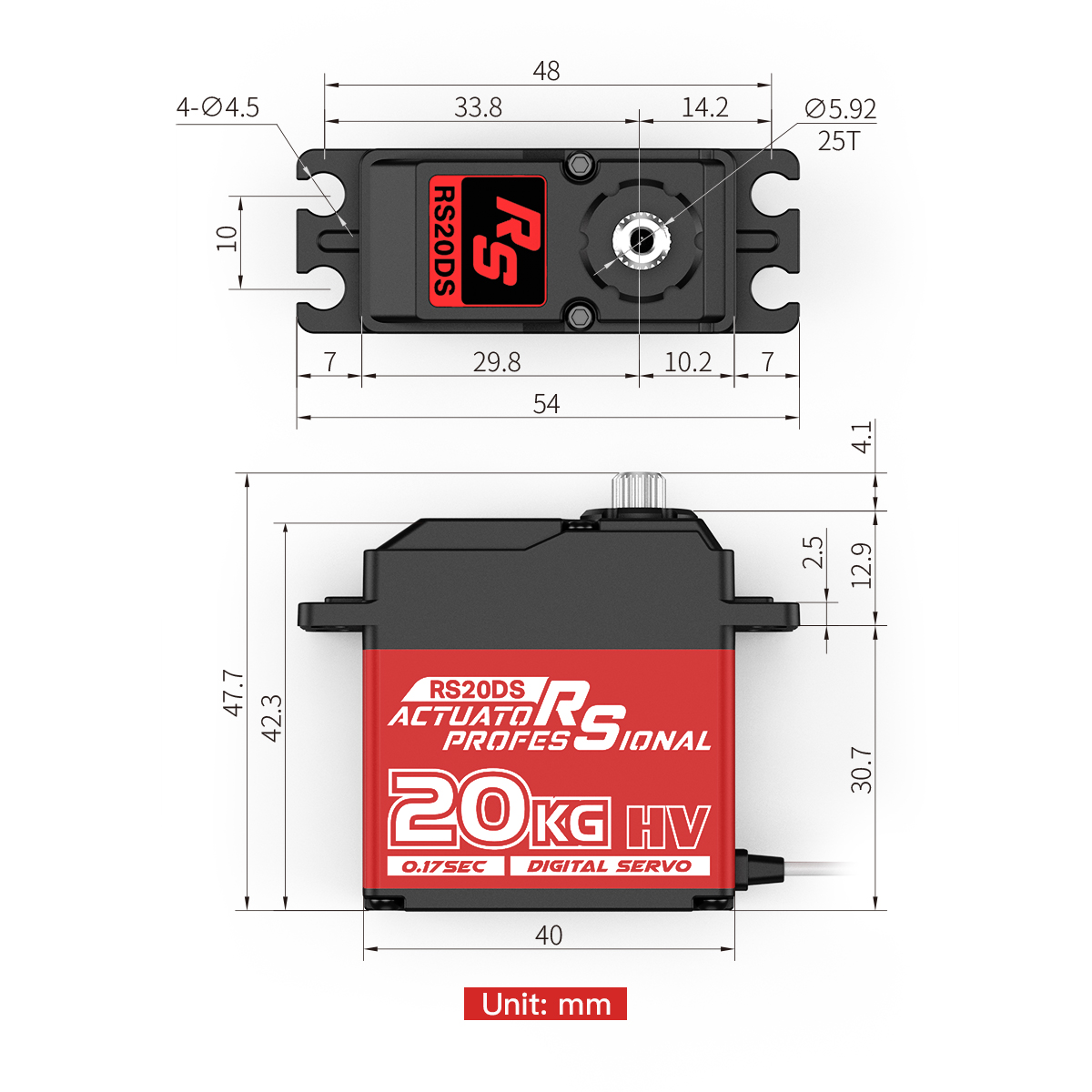

Size

40*20*42.3mm

Net Weight

63g

Wire

JR360mm/ 22AWG

Operating Travel

180°±10°

Signal Range

500 to 2500 µSec

Stall Torque

13.0 kg-cm (180 oz-in) @ 4.8V

15.0 kg-cm (208 oz-in) @ 6.0V

18.0 kg-cm (248 oz-in) @ 7.4V

20.0 kg-cm (278 oz-in) @ 8.4V

Operating Speed

0.230sec/ 60° @ 4.8V

0.210sec/60° @ 6.0V

0.185sec/60° @ 7.4V

0.170sec/60° @ 8.4V
