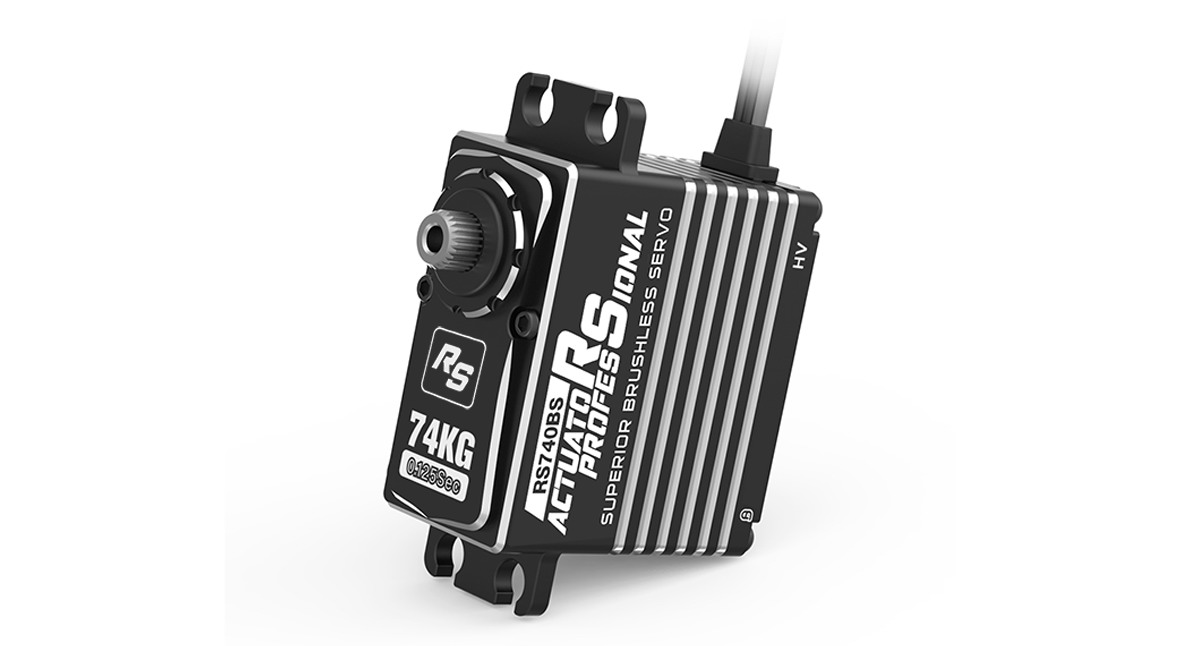

RS740BS – SERVO BRUSHLESS 74,0KG/8,4V STD

A new 4-Poles brusless motor servo RS740BS is here! It is programmable standard digital servo with 74KG super torque. The design feature of this new product is the use of high-quality 4-poles brushless motors, and the metal four bearing adopts dust-proof bearing, which effectively improve the product’s sealing and dust-proof and splash-proof effects. Its sturdy new CNC shape adopts a fast cooling design of the heat sink, which can achieve a good heat dissipation effect while servo is working and prevent the phenomenon of being hot. It is very suitable for scenes that require large torque applications, large torque applications, such as automation applications fixed-wing drone and UAV system.

Feature
High Performance Digital Standard Powerful Servo
High Quality Long Lifespan 4-Poles Brushless Motor
Heat Sink Fast Cooling CNC Case Design
Enhanced Steel Gears And Pin Shaft
Strong Sealing And Dustproof Metal Four Bearings
High Precision 25T Horn Gear Spline
Support Programmable User Parameters
Ideal For 1/8 1/10 On-Road, Off-Road, Monster Truck, Large Size Plane, Helicopter, Robot And Engine Etc.

Specification
Item name: RS740BS
Operating Voltage: 4.8-8.4V
Operating speed: 0.190sec/60° @ 4.8V
Operating speed: 0.165sec/60° @ 6.0V
Operating speed: 0.135sec/60° @ 7.4V
Operating speed: 0.125sec/60° @ 8.4V
Stall Torque: 45 kg-cm (625 oz-in) @ 4.8V
Stall Torque: 55 kg-cm (764 oz-in) @ 6.0V
Stall Torque: 65 kg-cm (903 oz-in) @ 7.4V
Stall Torque: 74 kg-cm (1028 oz-in) @ 8.4V

Gear: Steel
Motor: 4-Poles Brushless Motor

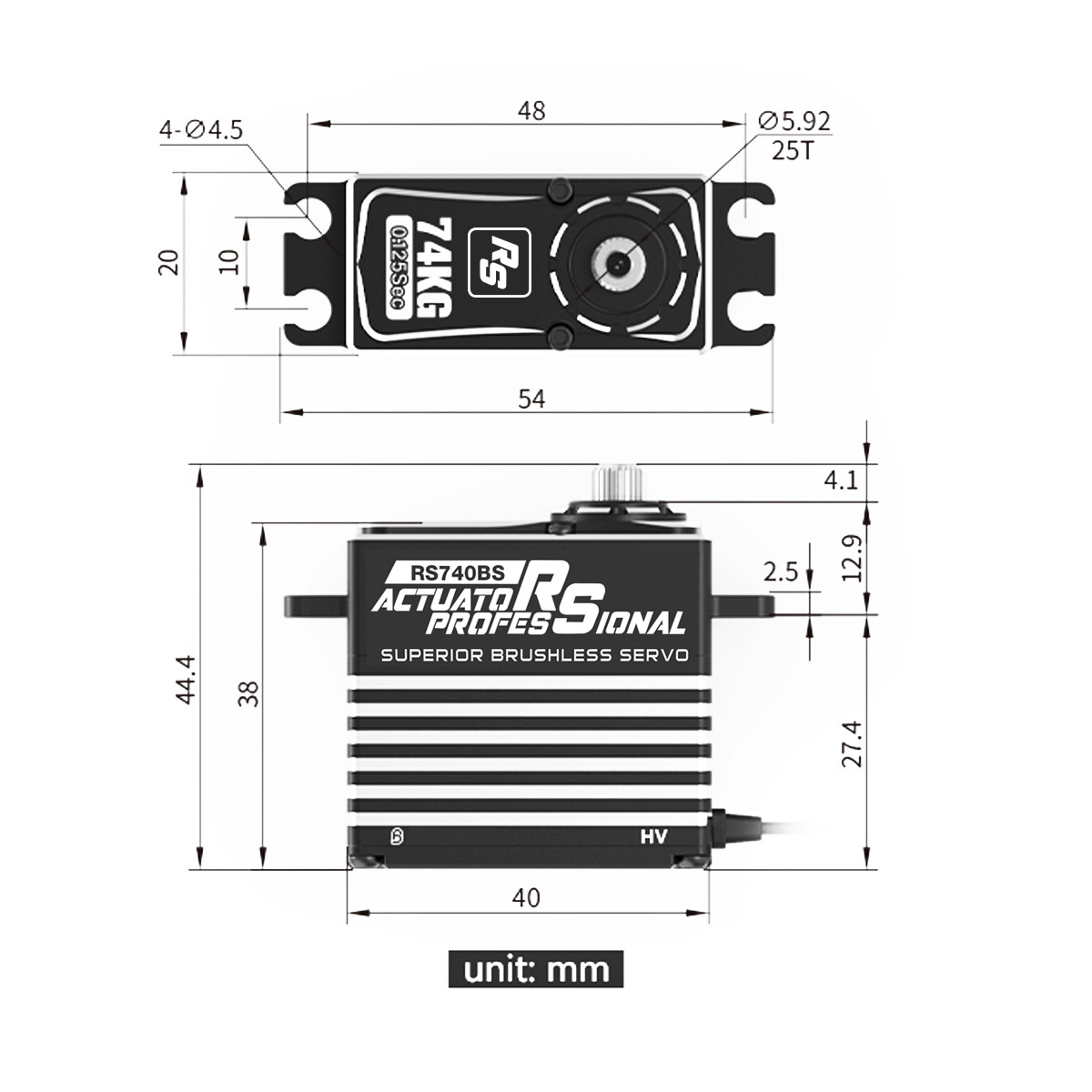

Size: 40*20*38mm (1.57 x 0.78 x 1.5 in)
Weight: 85g
Connector Wire: TYU 300mm / 22AWG
