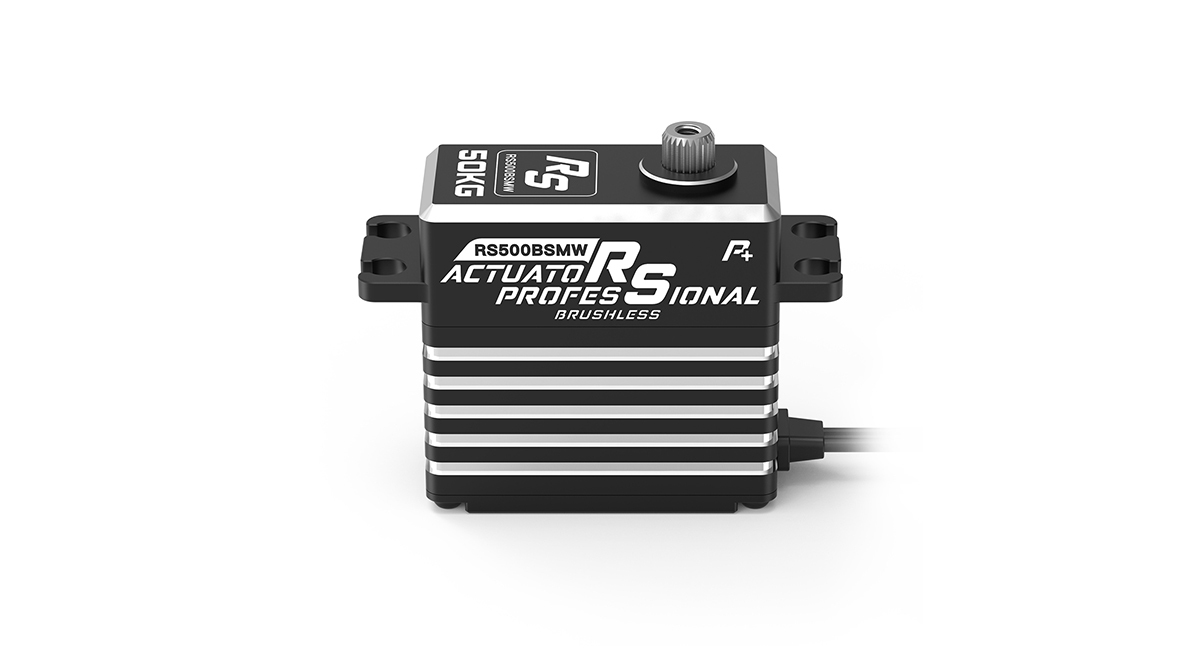

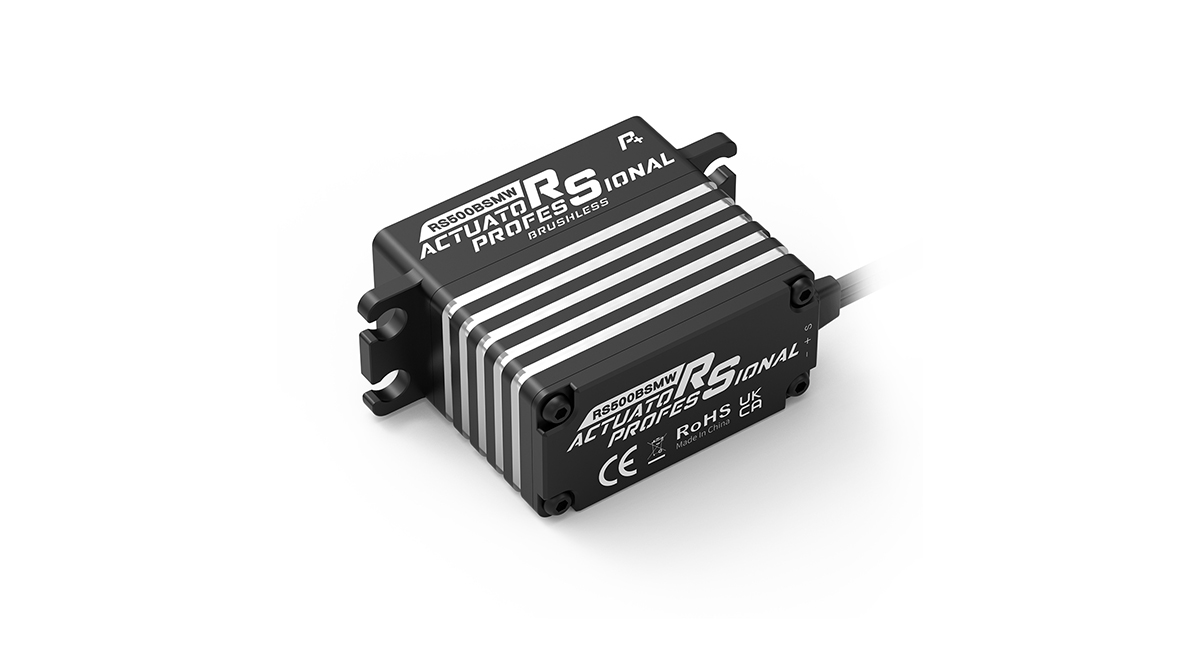

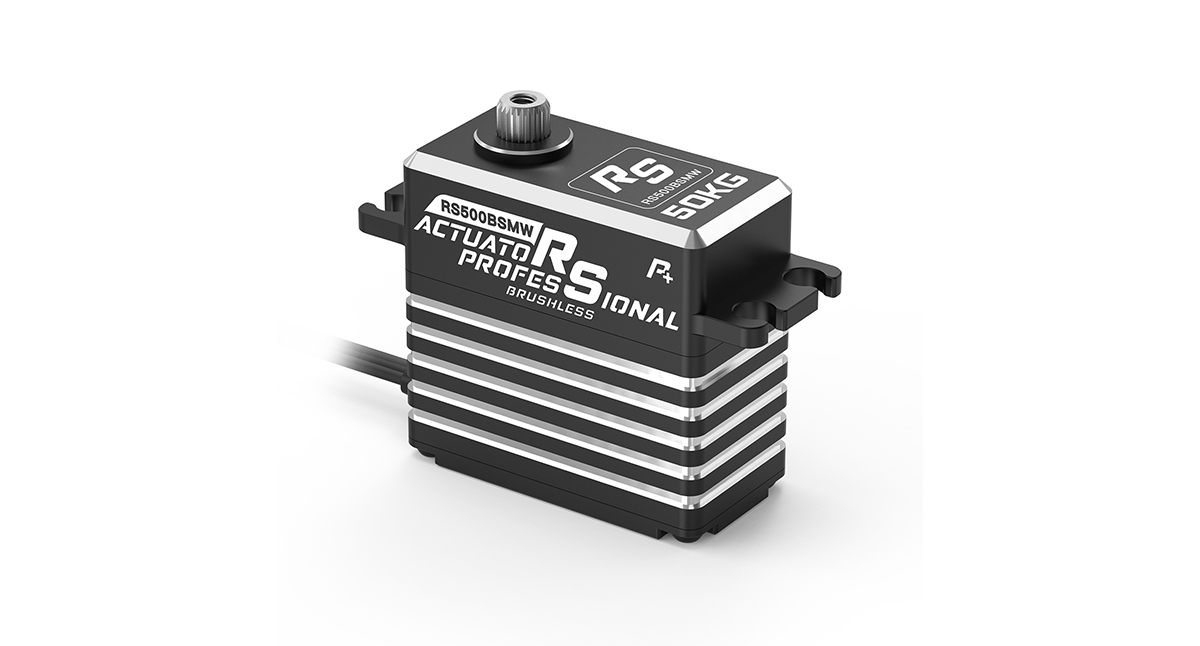

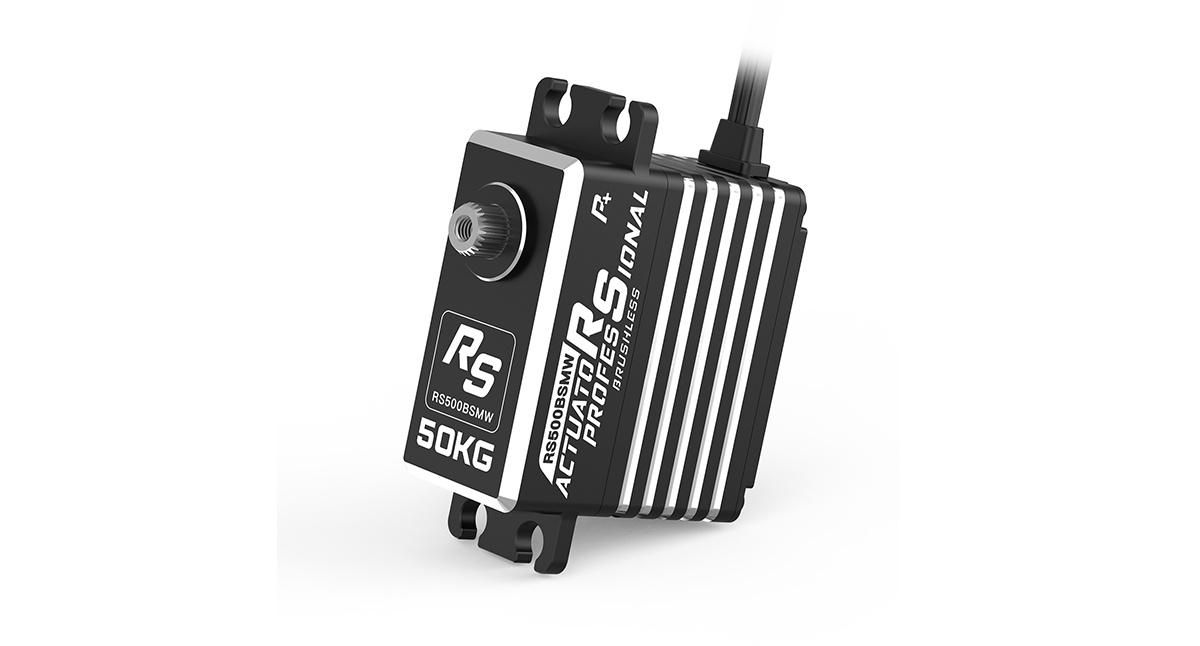

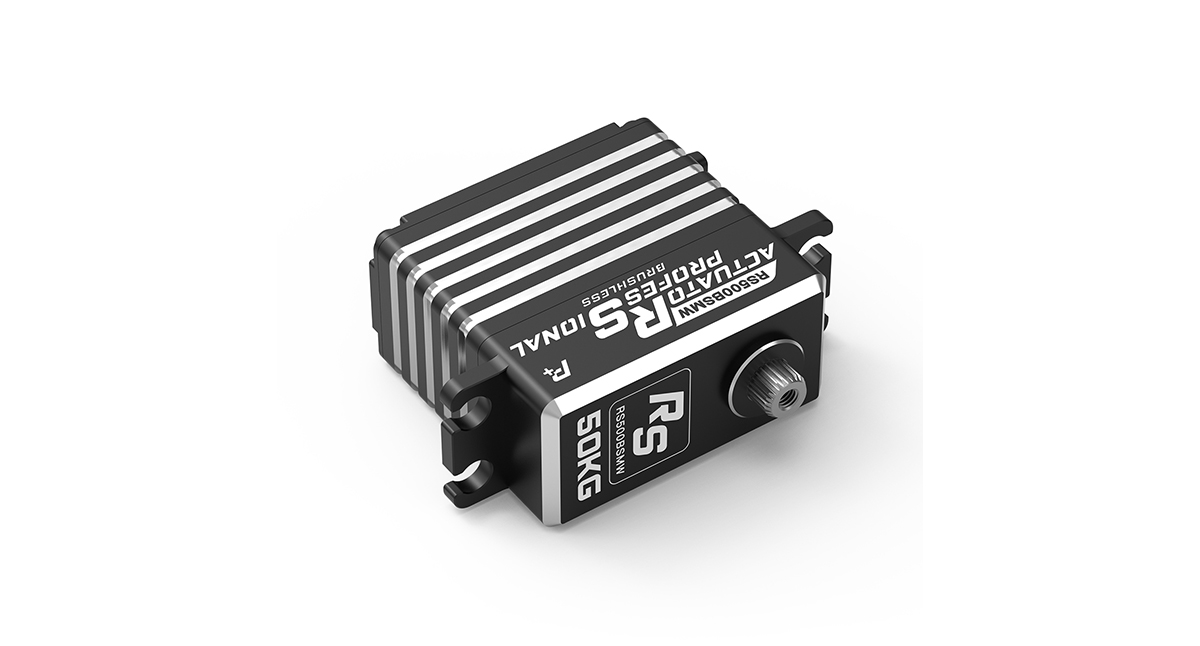

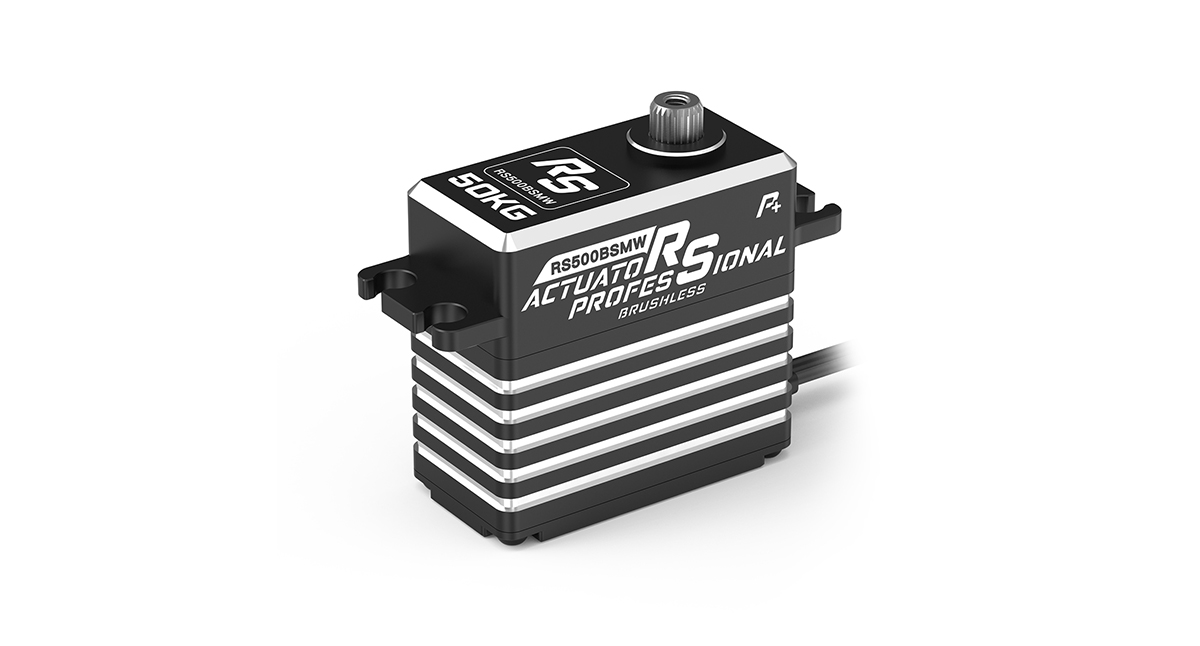

RS500BSMW – SERVO BRUSHLESS 50.0KG/8.4V STD

Control System

Pulse width modulation control

Refresh Rate

333Hz

Neutral Position

1520µS

Signal Mode

Digital

Dead band

2µSec

Operating Voltage

4.8V ~ 8.4V

Operating Temperature

-15C°~ +70C°

Bearing

Double Ball Bearings

Mechanical Angle

No Limit

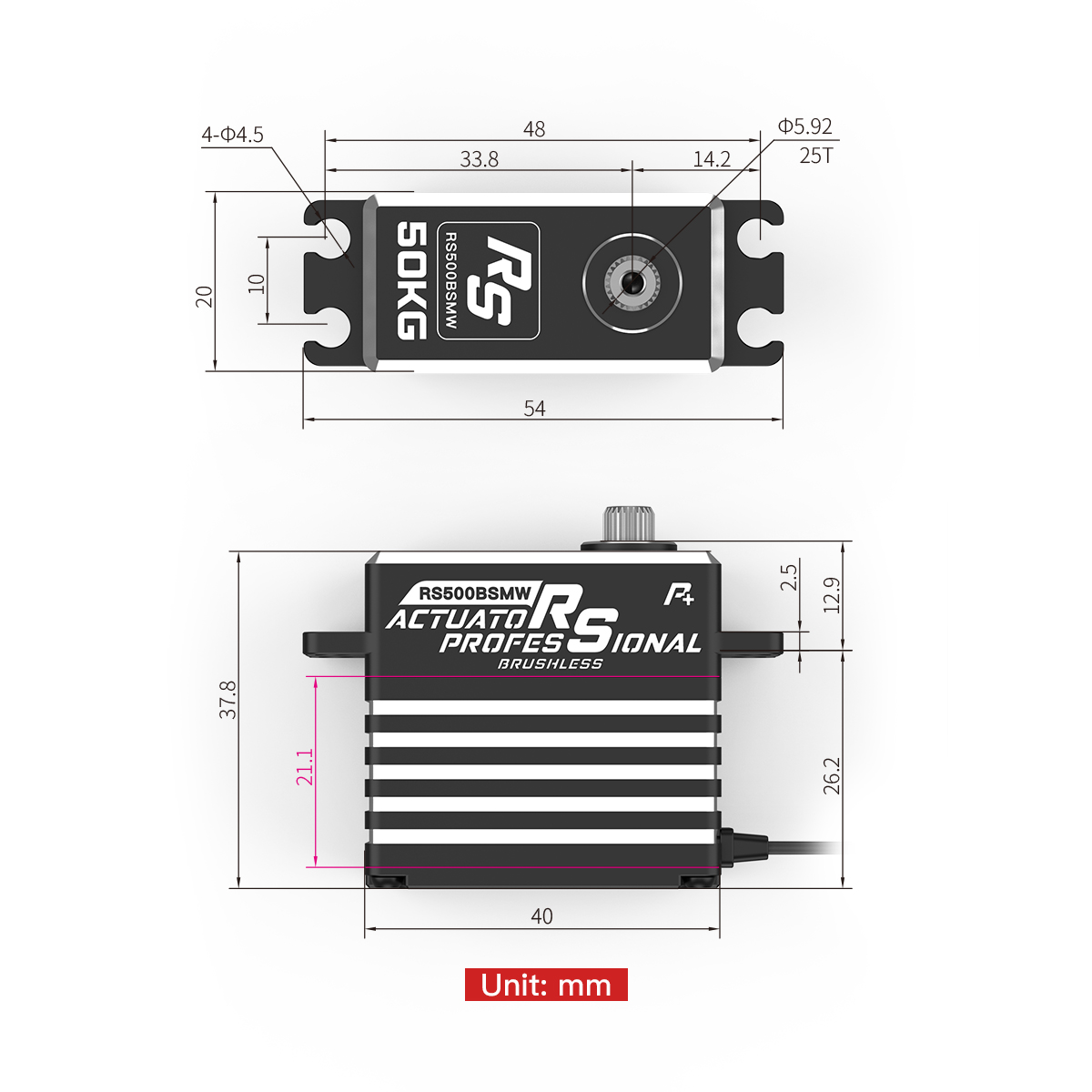

Size

40*20*37.8mm

Net Weight

73.5g

Wire

TYU 300mm / 22AWG

Operating Travel

180°±10°

Signal Range

500 to 2500 µSec

Stall Torque

30 kg-cm (417 oz-in) @ 4.8V
36 kg-cm (500 oz-in) @ 6.0V
44 kg-cm (611 oz-in) @ 7.4V
50 kg-cm (695 oz-in) @ 8.4V

Operating Speed

0.145 sec/60° @ 4.8V
0.125 sec/60° @ 6.0V
0.105 sec/60° @ 7.4V
0.090 sec/60° @ 8.4V
