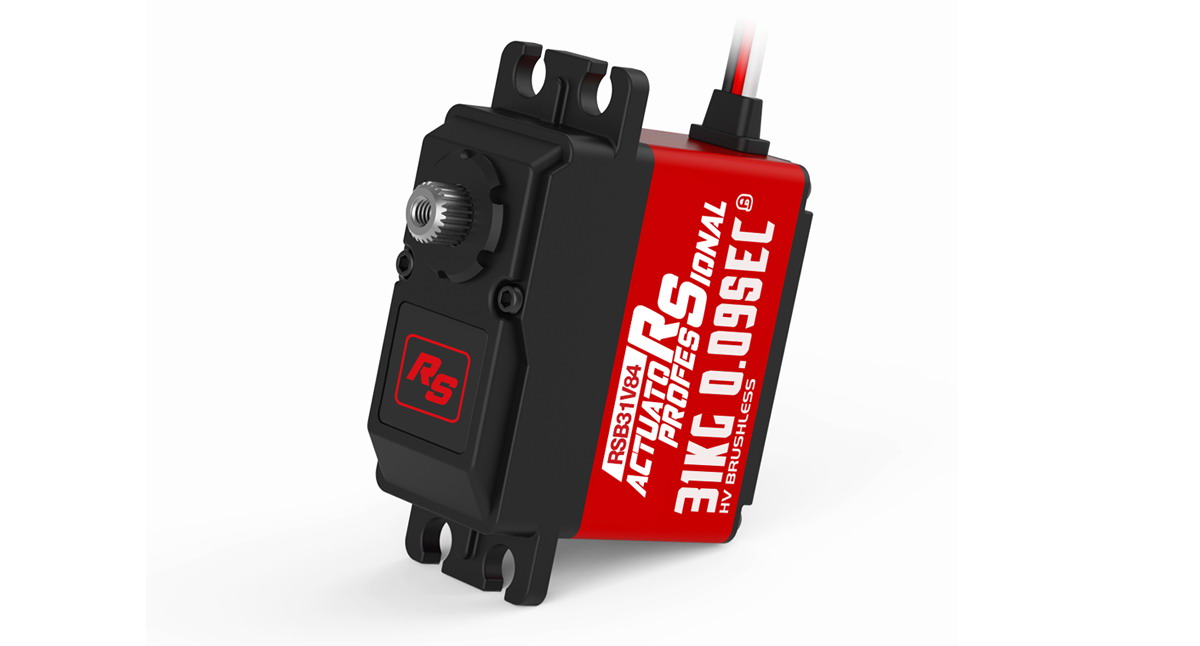

RSB31V84 – SERVO BRUSHLESS 31,0KG/8,4V STD

RSB31V84 servo. In order to meet the needs of more users, it is fully upgraded to the steel gear and the programmable function is added. Continued the 4.8V to 8.4V normal working voltage. If you need a budget servo with a speed of 0.090sec and a torque of 31kg-cm, then it will be a good choice for your cars or airplane.

Feature
Plastic & Aluminium Case
Programmable Digital Circuit
High Precision Steel Gear
Long Lifespan Brushless Motor
High Strength Dual Ball Bearings
Potentiometer Angle Sensor

Specification
RSB31V84
Operating Voltage: 4.8-8.4V
Operating speed: 0.125sec/60° @ 6.0V
Operating speed: 0.105sec/60° @ 7.4V
Stall Torque: 23 kg-cm (320 oz-in) @ 6.0V
Stall Torque: 28 kg-cm (389 oz-in) @ 7.4V
Gear: Steel
Motor: Brushless

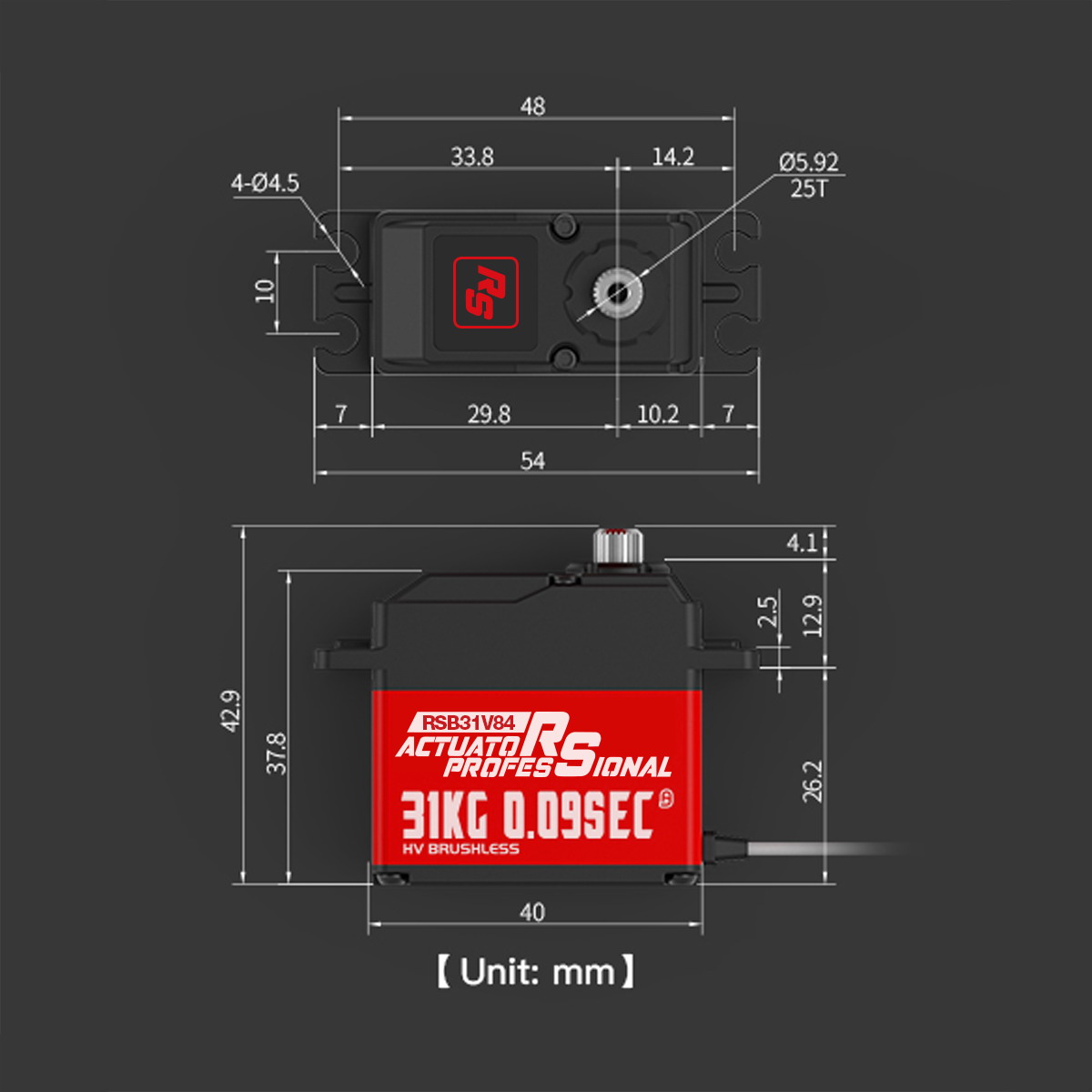

Size: 40*20*37.8mm
Weight: 69.5g
Connector Wire: JR 300mm / 22AWG
