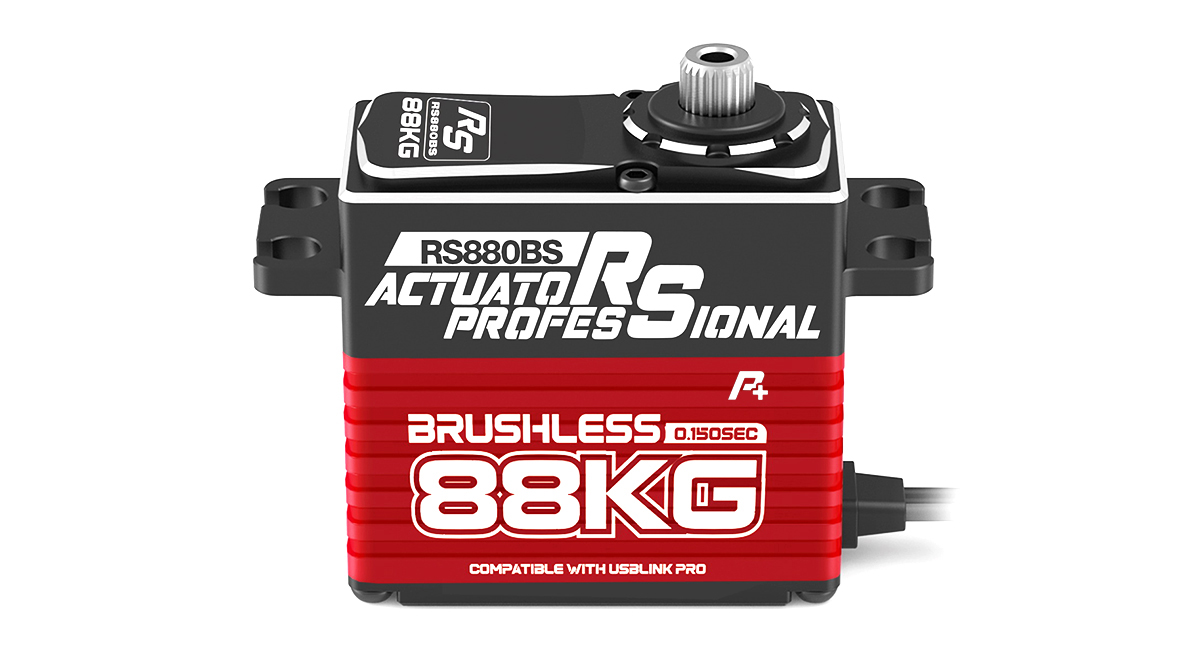

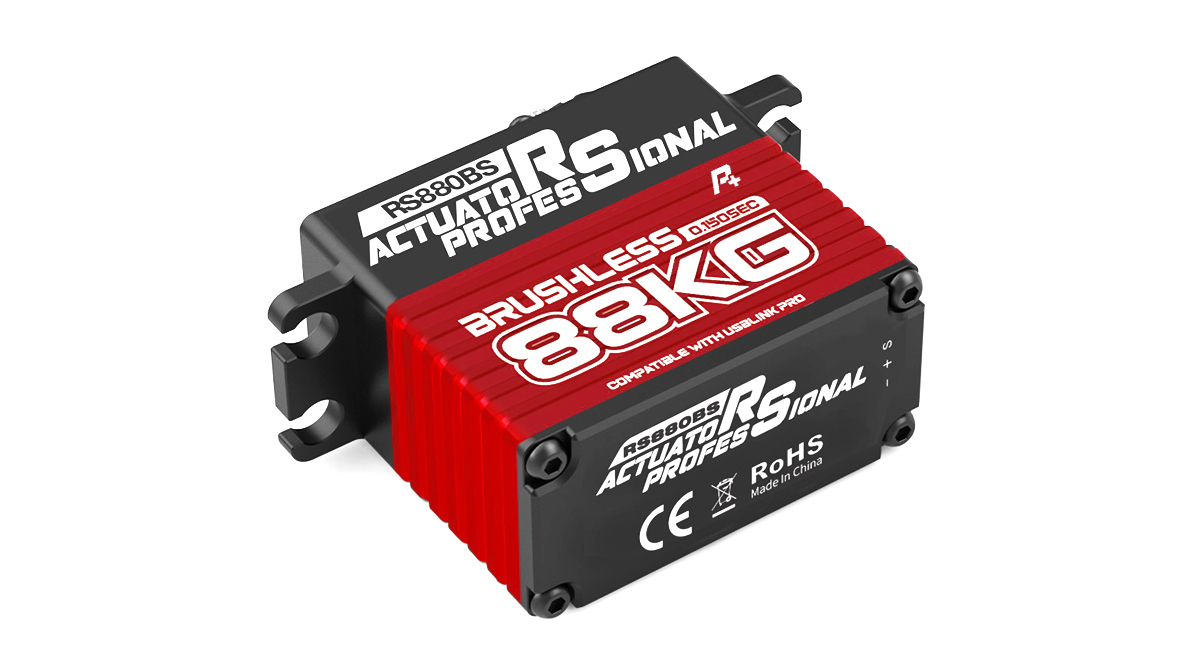

RS880BS – SERVO BRUSHLESS 88,0KG/8,4V STD

RS880BS is a light weight standard size servo, providing access to feedback potentiometer through the additional fourth orange wire, which is capable to measure the output angle directly.

88KG high torque and metal gear chain design for heavy duty application. Ensure the servo has reached its designated position or detect any potential impediments, of course, this allows additional closed-loop control from your controller. Enable for more complex robotics or industry applications, such as determining when the servo has reached its target.

Feature
Medium Aluminum Case
2S LiPo High Voltage Capable
Long Lifespan Brushless Motor
Separate Single Wire with JR Female Connector
Suitable for Robotics, Industry, Interactive artwork, Small-scale animatronics etc.

Specification
Model Name: RS880BS
Operating Voltage: 4.8-8.4V
Operating speed: 0.230sec/ 60° @ 4.8V
Operating speed:0.200sec/60° @ 6.0V
Operating speed:0.165sec/60° @ 7.4V
Operating speed:0.150sec/60° @ 8.4V
Stall Torque: 50 kg-cm (695 oz-in) @ 4.8V
Stall Torque: 62 kg-cm (861 oz-in) @ 6.0V
Stall Torque: 77 kg-cm (1070 oz-in) @ 7.4V
Stall Torque: 88 kg-cm (1223 oz-in) @ 8.4V
Gear: Strength Steel
Motor: 4-Pole Brushless

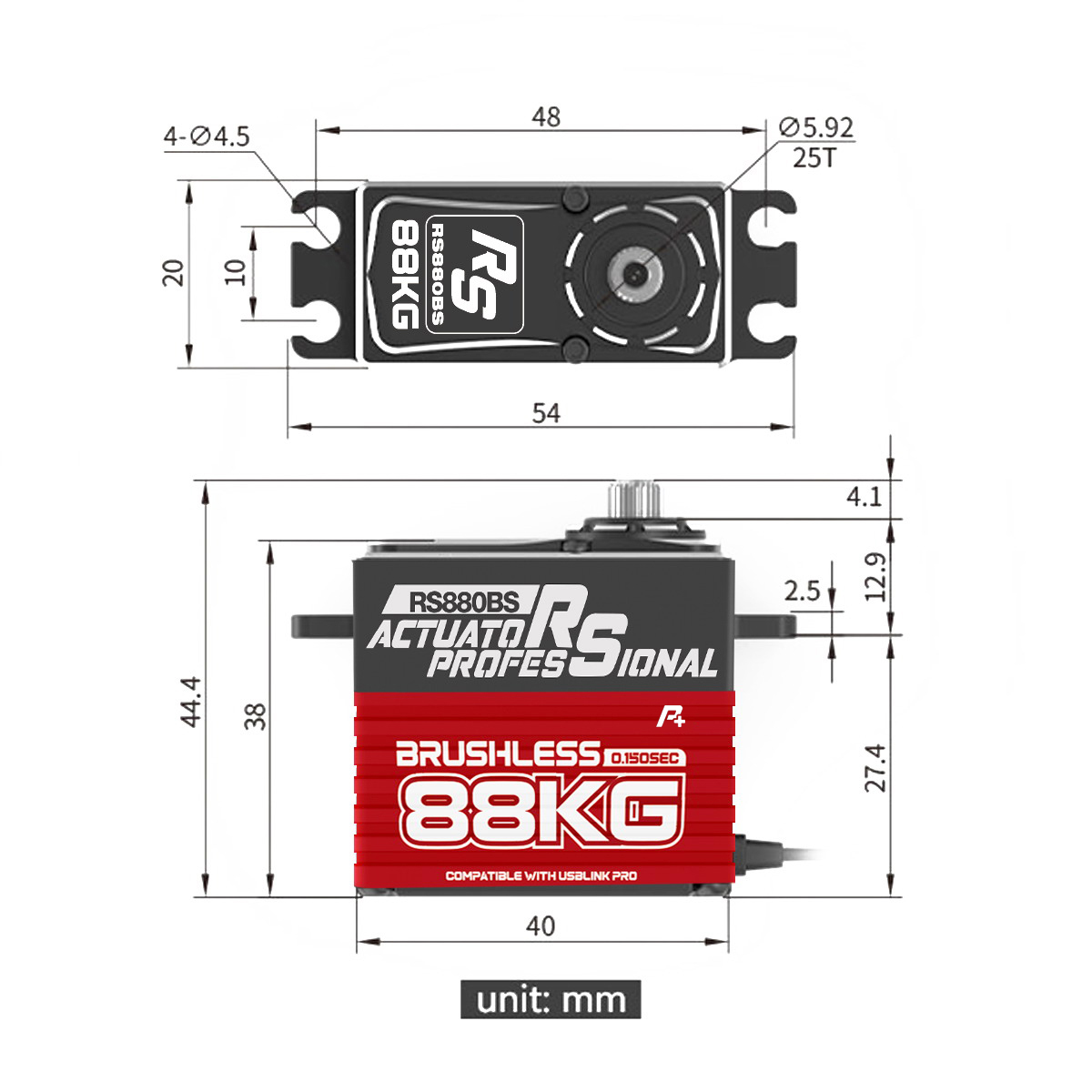

Size: 40*20*38mm
Weight: 85g
