RS220BM – SERVO BRUSHLESS 22,0KG/8,4V MINI

With the continuous optimization of the manufacturing technique, recently Actuators Professional servos bring more and more surprise. The mini size servo RS220BM with 15mm thickness can deliver 22KG super high torque now. Completely upgrade from 16KG to 22KG for this middle class servo with PRO brushless motor.

Optimize from servo firmware to hardware, which with strong holding force in center position. Mainly use for air applications, but also used in some competition cars, trucks and boats which with weight and dimension request. It combines power, precision with speed. The impressive performance has been proved by some professional pilots.

Feature
Full Aluminum Case and Structure
15mm Mid Servo Class
Strong Holding Force
25T Standard Output Spline
2S LiPo Voltage Capable
Ideal for 1/12 Scale RC Cars, 3D Helicopters, Jet Airplanes, Glider, Car, Robot etc.

Specification
Model Name: RS220BM
Operating Voltage: 4.8-8.4 V
Operating speed: 0.090sec/60° @ 6.0V
Operating speed: 0.080sec/60° @ 7.4V
Operating speed: 0.070sec/60° @ 8.4V
Stall Torque: 15.8 kg-cm (219 oz-in) @ 6.0V
Stall Torque: 19.5 kg-cm (271 oz-in) @ 7.4V
Stall Torque: 22.0 kg-cm (305 oz-in) @ 8.4V
Gear: Steel
Motor: Brushless

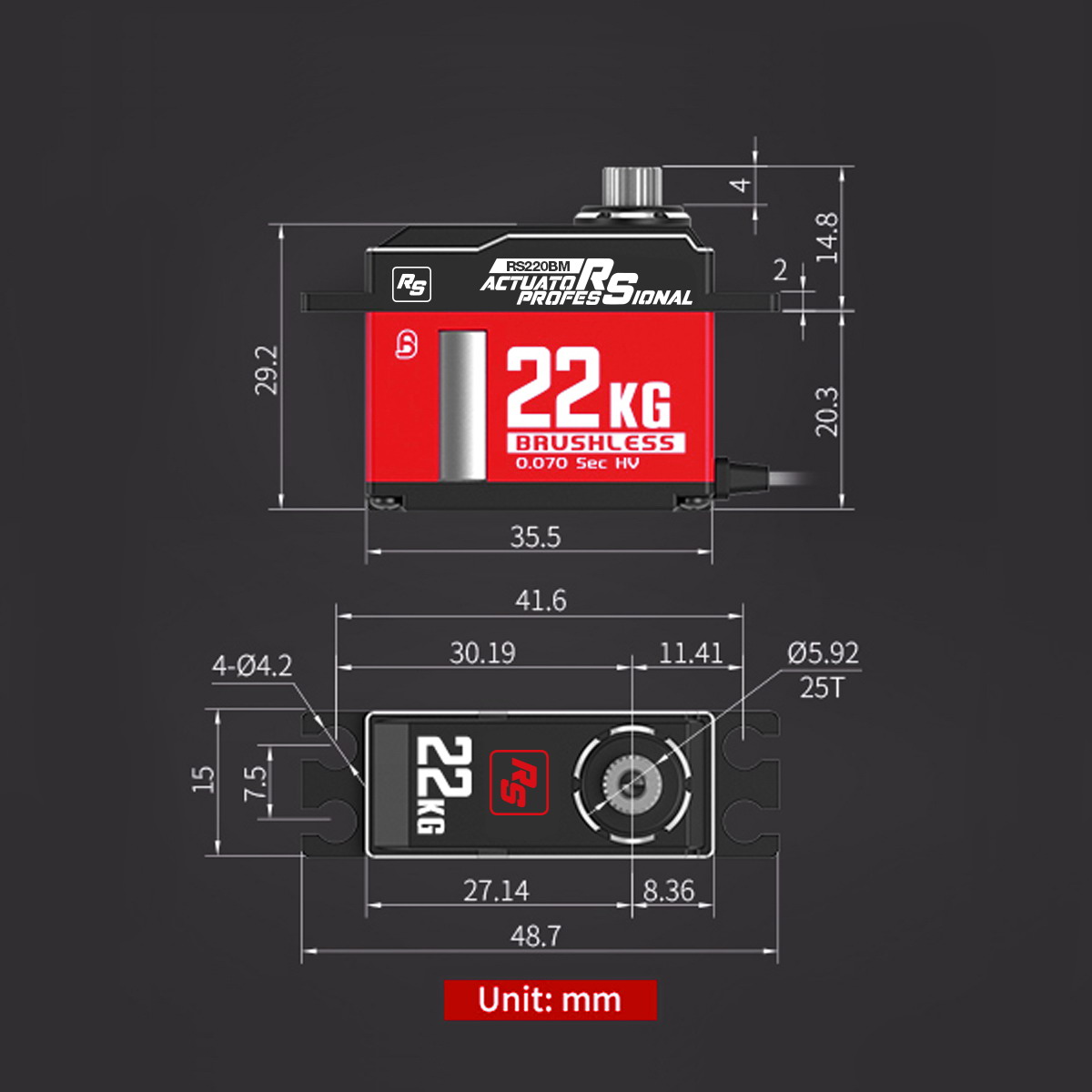

Size: 35.5*15*29.2mm (1.39 x 0.59 x 1.14 in)
Weight: 45g
Connector Wire: TYU 180mm or 360mm /22AWG
