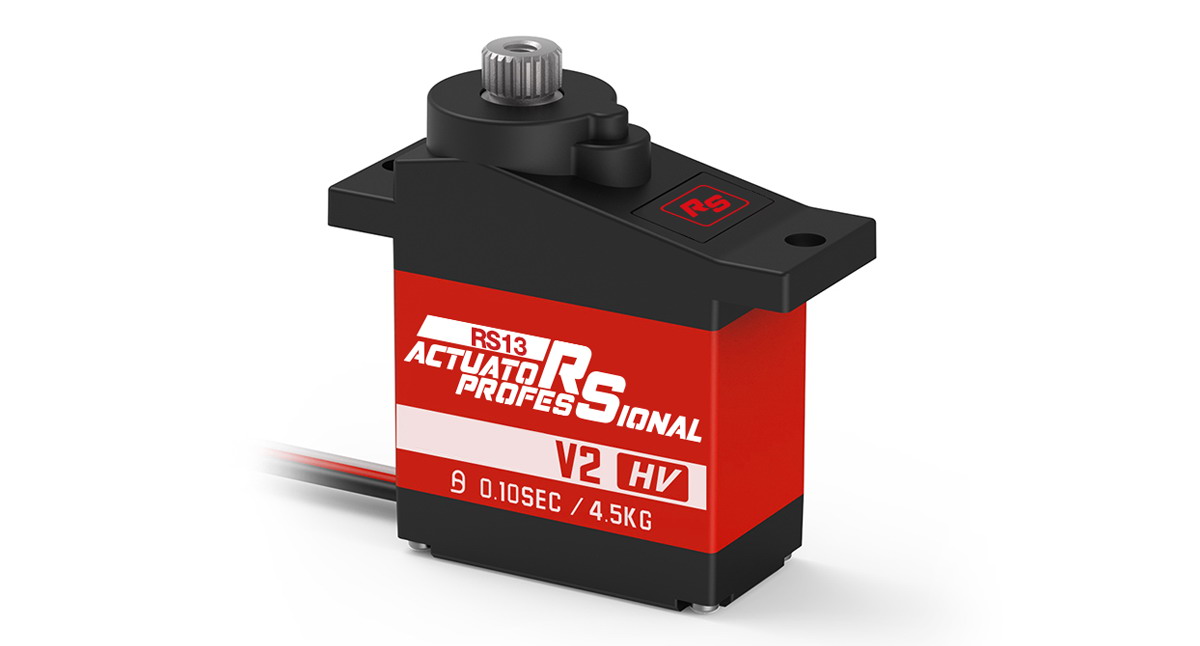

RS13 – SERVO DC 4,5KG/8,4V MICRO

RS13 servo is programmable digital servo. Combine with double ball bearings, titanium gear and DC motor, to provide high torque. Support to program the servo parameter via our USB Programmer to meet different needs.

Feature
Plastic and Aluminum Case
High Precision Metal Gears
High Quality Brushed Motor
High Performance Programmable Digital servo
Ideal for RC Crawler, Airplane, 450 Size Helicopter etc.

Specification
RS13
Operating Voltage: 4.8-8.4V
Operating speed: 0.15sec/60° @ 4.8V
Operating speed: 0.13sec/60° @ 6.0V
Operating speed: 0.11sec/60° @ 7.4V
Operating speed: 0.10sec/60° @ 8.4V
Stall Torque: 3.0 kg-cm (41.66 oz-in) @ 4.8V
Stall Torque: 3.8 kg-cm (52.77 oz-in)  @ 6.0V
Stall Torque: 4.2 kg-cm (58 oz-in) @ 7.4V
Stall Torque: 4.5 kg-cm (63 oz-in) @ 8.4V
Motor type: DC
Gear type: Titanium
Size: 22.8*12*29.4mm (0.89 x 0.47 x 1.15 in)
Weight: 16g
Connector Wire: JR 180mm / 26AWG
