RS450BSW – SERVO BRUSHLESS 45,0KG/8,4V STD IP67

The RS450BSW programmable waterproof standard digital multi-function servo is one of Actuators Professional bestsellers. Its reliable performance and design are welcomed by many enthusiasts. Driven at the highest voltage of 8.4V, the maximum torque can reach 45Kg-cm, and the fastest speed can reach 0.085Sec/60°.
The torque and speed can meet the needs of most customer and are very suitable for automation applications fixed-wing drone and UAV system.

The highlight of its internal structure design is composed of reinforced steel gears and shafts, high-efficiency brushless motors, and silk-smooth three bearings. With these supports, the servo can achieve the best smooth operation. If your training time and competition are long, you don’t have to worry about the servo overheating phenomenon under long-term work, because its CNC shell cooling groove can quickly cool and dissipate heat. And its magnetic sensor waterproof IP67 function allows the model to achieve freedom of sea, land and air. You don’t have to worry about rain in the wet sky when flying, rc boat enthusiasts can also train on streams and seaside, And it runs fast even on muddy ground and thick snow.

Feature
Ultra Light Unique Design
High Performance Standard Digital Servo
Fast Cooling Heat Sink Case
Strengthen High Chrome Steel Shaft
Extra Strong Patent Steel Gears
Super Strong Three Ball Bearings
High Efficiency Bruhless Motor
Programmable Digital Circuit
Magnetic Sensor Waterproof IP67
Ideal for 1/10, 1/8  On Road, Off road, Truck, Airplane, Helicopter and Engine etc.

Specification
RS450BSW
Operating Voltage: 4.8-8.4V
Operating speed: 0.115sec/60° @ 6.0V
Operating speed: 0.100sec/60° @ 7.4V
Operating speed: 0.085sec/60° @ 8.4V
Stall Torque: 34 kg-cm (473 oz-in) @ 6.0V
Stall Torque: 39 kg-cm (542 oz-in) @ 7.4V
Stall Torque: 45 kg-cm (625 oz-in) @ 8.4V
Gear: Steel
Motor: BLS

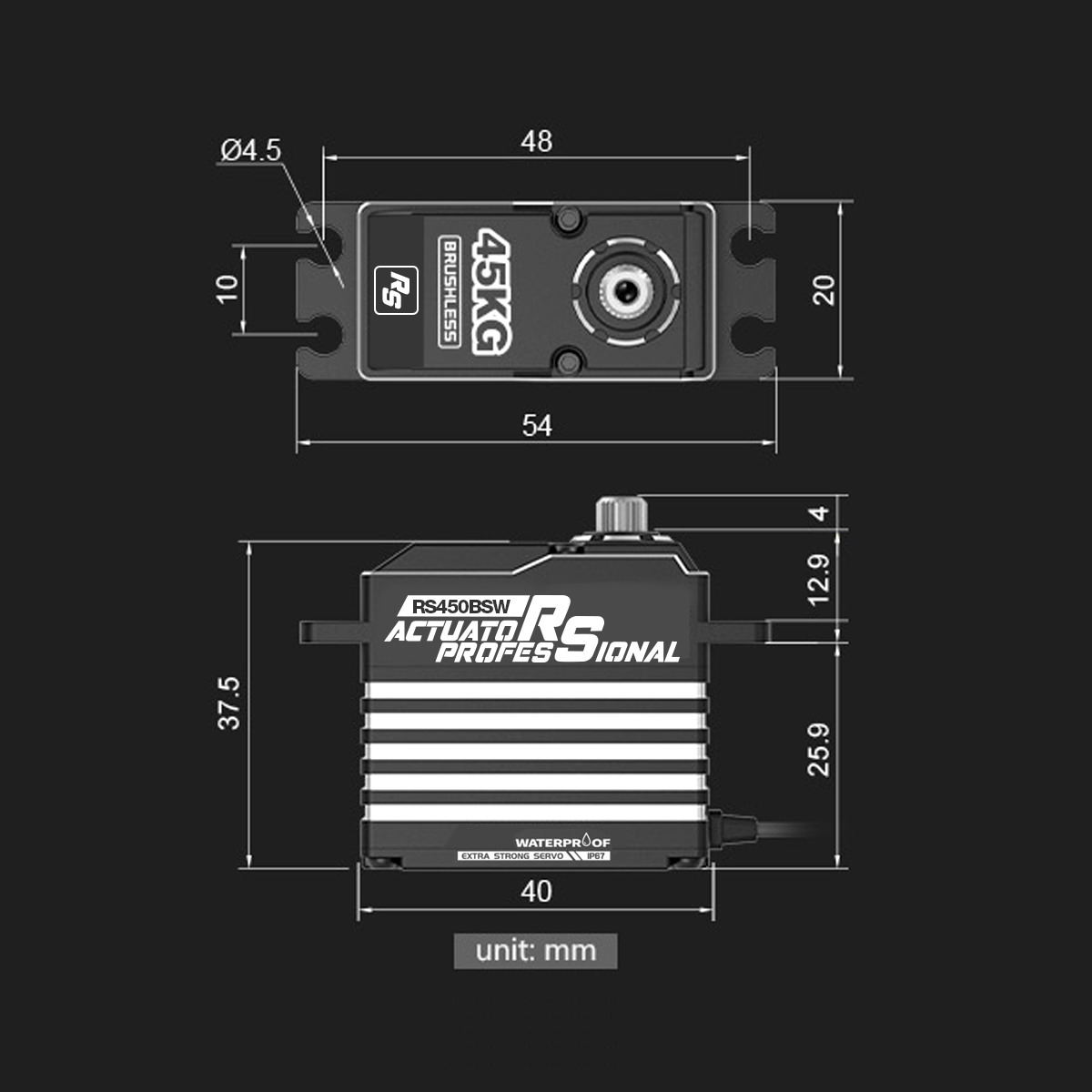

Size: 40*20*37.5mm (1.57 x 0.78 x 1.46 in)
Weight: 83g
Connector Wire: JR 300mm
