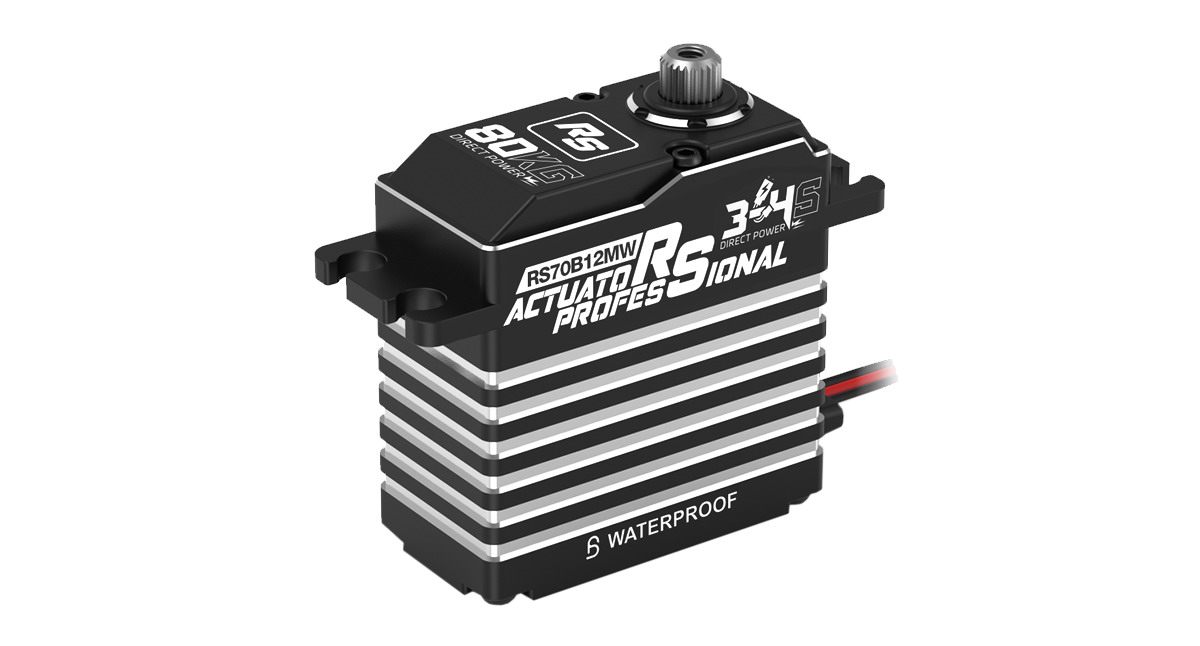

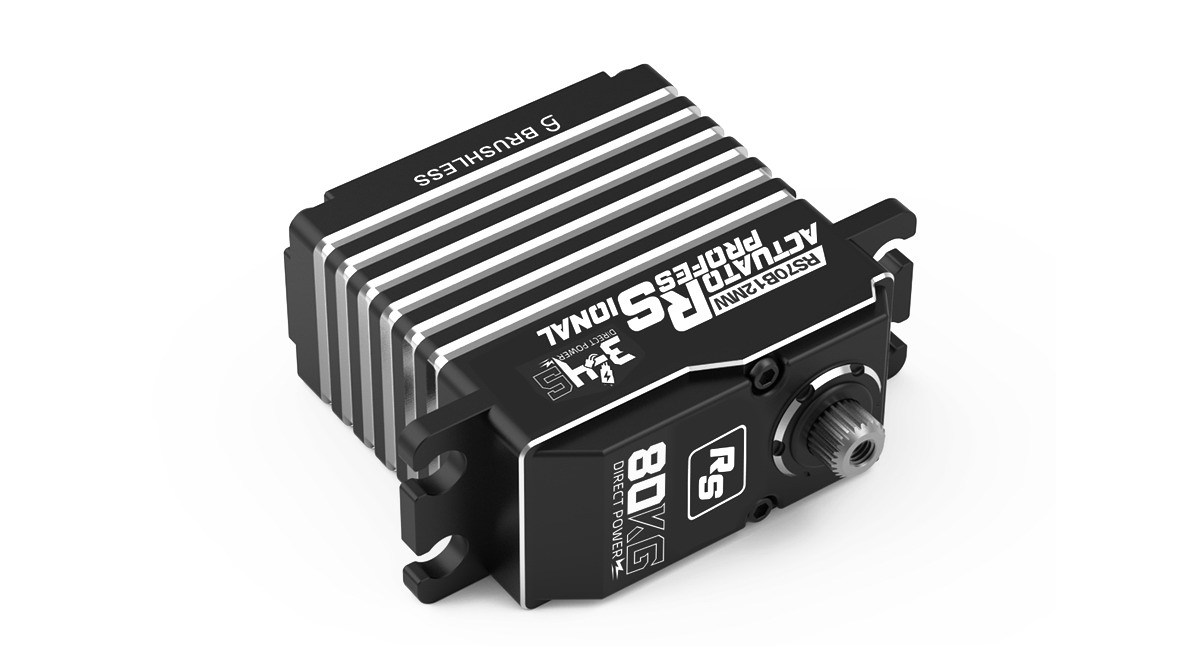

RS70B12MW – SERVO BRUSHLESS POTLESS 65KG/12V LARGE IP67

As 2s lipo application cannot meet more and more people’s usage, this 12V Series Smart Servo especially designed for higher voltage application, such as R/C Crawler Cars, Airplanes, Boats, Robots or Industrial/Medical applications.

Feature
Smooth- Ball bearings to make it more powerful and smoother
Reliable- High quality brushless motor
Waterproof- Magnetic position sensor
Precision- CNC aluminum housing

Specification
Item Name: RS70B12MW
Operating Voltage: 7.4 – 17.0V
Operating speed: 0.140sec/60° @ 11.1V
Operating speed: 0.125sec/60° @ 12.0V
Operating speed: 0.100sec/60° @ 12.6V
Stall Torque: 58 kg-cm (806 oz-in) @ 11.1V
Stall Torque: 65 kg-cm (903 oz-in) @ 12.0V
Stall Torque: 72 kg-cm (1000 oz-in) @ 14.4V
Gear: Steel
Motor: BLS

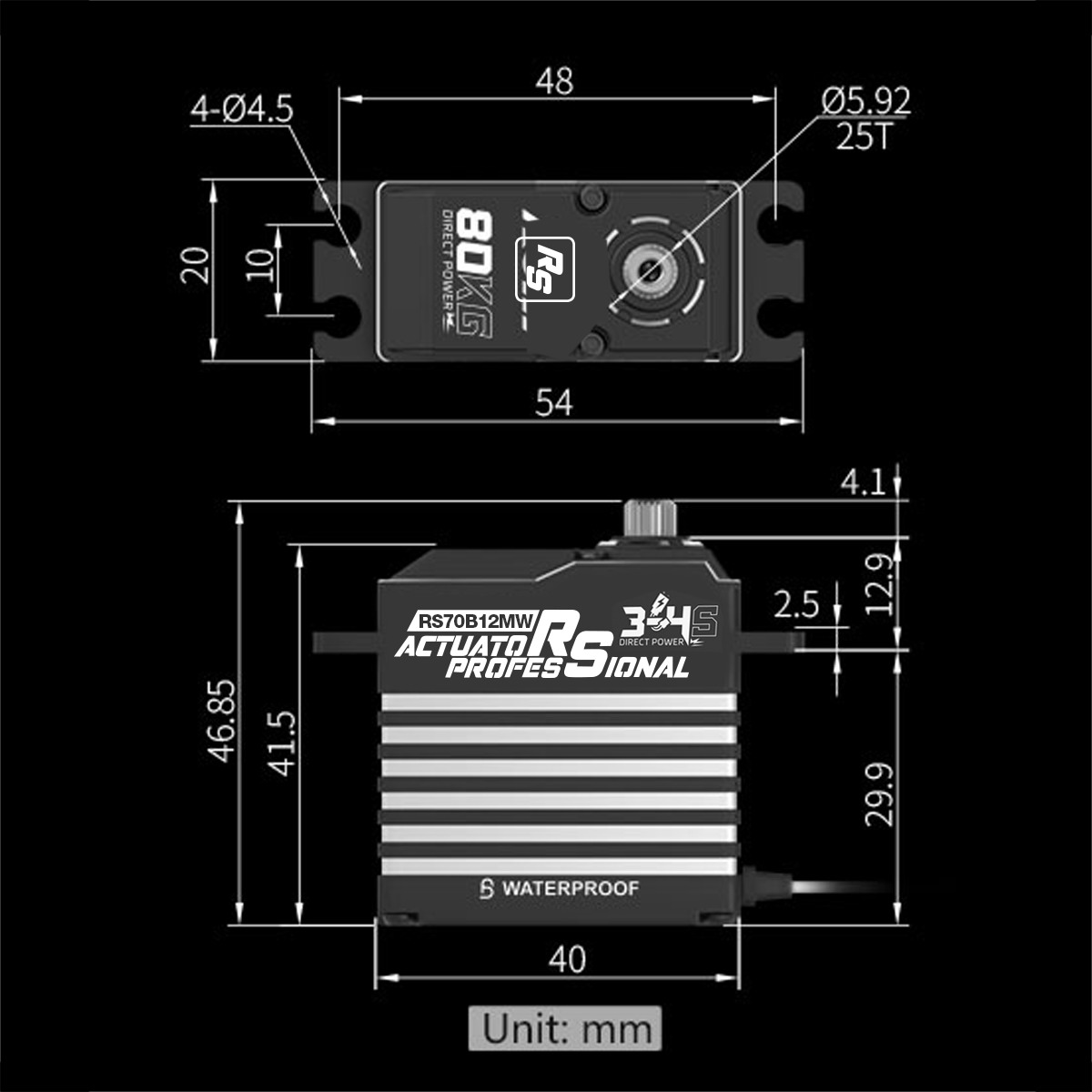

Size: 40*20*41.5mm (1.57 x 0.78 x 1.63 in)
Weight: 90.5g
Connector Wire: TYU+JST 300mm / 22AWG
