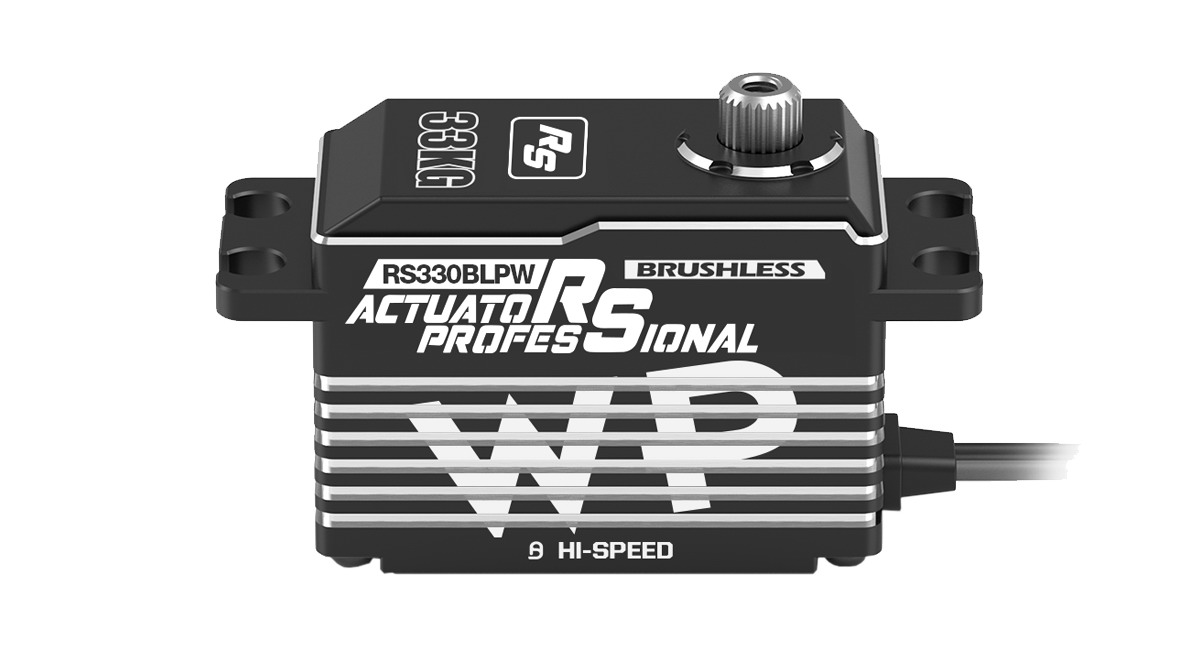

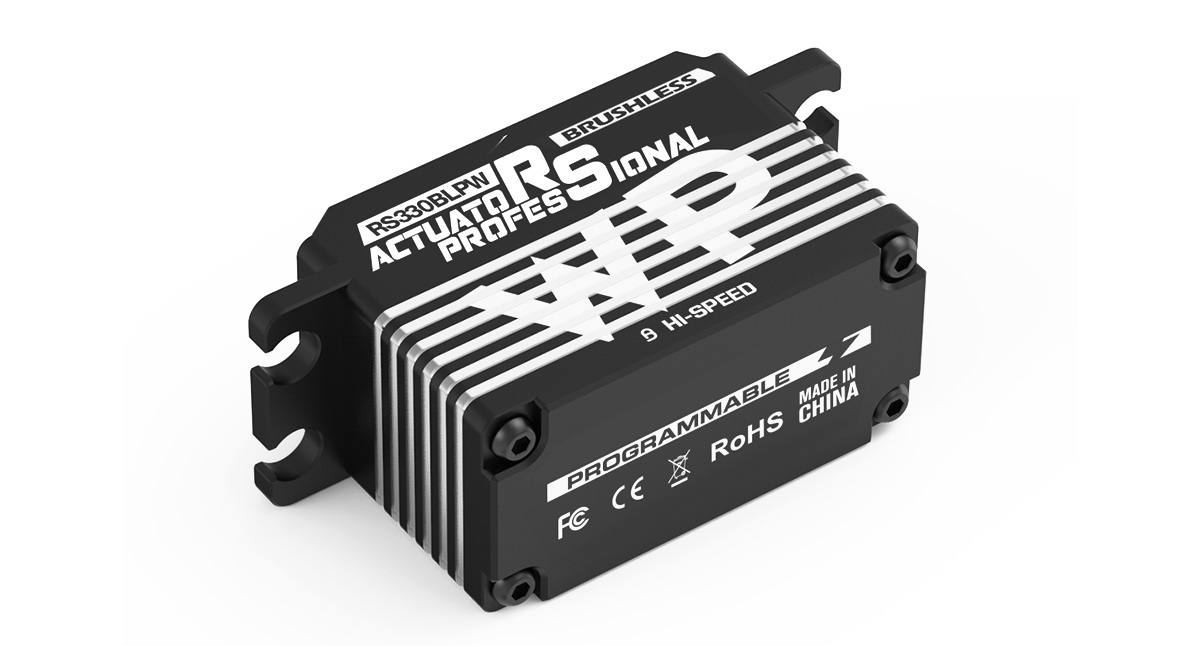

RS330BLPW – SERVO BRUSHLESS 33,0KG/8,4V LOW PROF IP67

RS330BLPW servo, light weight and fast heat dissipation design, upgrade to full stainless steel gears, it will be more reliable to be used for your models. If you are looking for the super spec with high torque and speed in short case, as well as waterproof type, RS330BLPW will be the nice option. Available to program via USB programmer for DIY parameter.

Feature
Fast Cooling Heat Sink Case
Extra Strong Steel Gears
High Precision Magnetic Sensor
Long Lifespan Brushless Motor
Dual Ball Bearing
Programmable Digital Circuit
Fully Waterproof Up To IP67
Ideal for 1/10, 1/12 Touring Cars, Racing Cars On Road, Airplane, 1/10 Scale Surface, Boat, Aircraft Applications

Specification
Item: RS330BLPW
Operating Voltage: 4.8-8.4 V
Operating speed: 0.090sec/60° @ 6.0V
Operating speed: 0.080sec/60° @ 7.4V
Operating speed: 0.065sec/60° @ 8.4V
Stall Torque: 25.0 kg-cm (348 oz-in) @ 6.0V
Stall Torque: 30.0 kg-cm (417 oz-in) @ 7.4V
Stall Torque: 33.0 kg-cm (459 oz-in) @ 8.4V
Gear: Steel
Motor: BLS
Size: 40.8*20.2*29.5mm (1.60 x 0.79 x 1.16 in)
Weight: 66g
Connector Wire: TYU 180mm / 22AWG
